Processor Specifications

• Processor Type: 32-bit RISC processor
• Clock Speed: 100 MHz
• Memory: 16 MB RAM, 8 MB Flash
• Execution Speed: 20 MIPS
• Floating Point: Hardware FPU

I/O Capabilities

• Digital I/O: Configurable via I/O modules
• Analog I/O: Configurable via I/O modules
• I/O Expansion: Up to 16 I/O modules
• Interrupt Handling: 16 priority levels
• Watchdog Timer: Configurable 1ms to 10s

Communication Interfaces

• Ethernet: 10/100Base-T, TCP/IP
• Fieldbus: Profibus DP, FF-H1
• Serial: RS-232, RS-485
• Backplane: ABB Advant OCS bus
• Protocol Support: Modbus, DNP3, IEC 60870-5

Power Requirements

• Operating Voltage: 5V DC ±5%
• Current Consumption: 1.5A maximum
• Power Consumption: 7.5W maximum
• Inrush Current: <5A for 10ms
• Power Supply: Redundant options available

Environmental Specifications

• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% non-condensing
• Vibration: 5-150Hz, 10g peak
• Shock: 30g, 11ms duration

Safety & Certification

• Safety Certification: IEC 61010-1, UL 61010-1
• EMC: IEC 61000-6-2, IEC 61000-6-4
• CE Marking: Yes
• UL Certification: Yes
• ATEX Certification: Optional for hazardous areas

Power Monitoring Specifications

• Voltage Range: 0-690V AC (line-line)
• Current Range: 0-5000A (with appropriate CTs)
• Frequency Range: 50/60Hz ±5%
• Power Measurement: Active, reactive, apparent power
• Energy Measurement: kWh, kVARh, kVAh

Input/Output Configuration

• Voltage Inputs: 3-phase + neutral
• Current Inputs: 3-phase (CT inputs)
• Digital Inputs: 16 configurable inputs
• Digital Outputs: 16 relay outputs
• Analog Outputs: 4 configurable outputs

Measurement Accuracy

• Voltage: ±0.2% of reading
• Current: ±0.2% of reading
• Power: ±0.5% of reading
• Energy: ±0.5% of reading
• Power Factor: ±0.005

Power Requirements

• Control Power: 24V DC ±10%
• Power Consumption: 25W maximum
• Input Current: 1.2A maximum
• Backup Power: Optional battery backup
• Isolation: Reinforced isolation 3kV

Communication Capabilities

• Ethernet: 10/100Base-T, TCP/IP
• Fieldbus: Profibus DP, Modbus RTU/TCP
• Serial: RS-485, RS-232
• Protocol Support: IEC 61850, DNP3
• Redundancy: Support for redundant communication

Comprehensive Power Monitoring

Advanced power measurement capabilities with high accuracy for voltage, current, power, energy, and power quality parameters. Provides complete visibility into power system performance.

Intelligent Protection Functions

Comprehensive protection features including overcurrent, overvoltage, undervoltage, phase imbalance, and ground fault detection. Programmable trip settings for customized protection.

Flexible I/O Configuration

Versatile input/output configuration with 16 digital inputs, 16 relay outputs, and 4 analog outputs. Allows for customization to meet specific application requirements.

Control Capabilities

• Control Modes: Position, Velocity, Torque
• Axis Configuration: 1-4 axes (expandable)
• Feedback Types: Encoder, Resolver, Hall Effect
• Control Loop Update: 62.5μs per axis
• Multi-Axis Coordination: Yes, interpolated motion

Input/Output Specifications

• Digital Inputs: 16 channels, 24V DC
• Digital Outputs: 16 channels, 24V DC, 0.5A per channel
• Analog Inputs: 8 channels, ±10V, 16-bit resolution
• Analog Outputs: 4 channels, ±10V, 16-bit resolution
• Encoder Inputs: Up to 4 channels, differential

Performance Specifications

• Position Resolution: Up to 24 bits
• Velocity Range: 0-100,000 RPM
• Position Accuracy: ±1 encoder count
• Settling Time: <10ms (typical)
• Following Error: Programmable, typically <5 encoder counts

Power Requirements

• Control Power: 100-240V AC, 50/60Hz
• Power Consumption: 50W (control circuit)
• Drive Power: 24-72V DC (optional internal supply)
• Inrush Current: <20A for 10ms
• Efficiency: >90% (power stage)

Communication Capabilities

• Ethernet: 10/100Base-T, TCP/IP
• Fieldbus: Profibus, CANopen, DeviceNet
• Serial: RS-232, RS-485
• Protocol Support: Modbus, EtherCAT, Profinet
• Real-Time Communication: Yes, deterministic

Control Algorithms

• Position Control: PID with velocity and acceleration feedforward
• Velocity Control: PI with feedforward and friction compensation
• Torque Control: Proportional with current loop compensation
• Adaptive Tuning: Auto-tuning and gain scheduling
• Filtering: Low-pass, notch, and band-pass filters

Motion Profile Generation

• Profile Types: Trapezoidal, S-curve, polynomial
• Interpolation: Linear, circular, helical, arbitrary
• Electronic Gearing: Fixed and programmable ratios
• Camming: Electronic cam profiles
• Master-Slave: Multi-axis synchronization

Feedback Interface

• Encoder Types: Incremental, absolute, sine/cosine
• Resolver: Digital resolver interface
• Hall Effect: Digital and analog Hall sensors
• SSI Interface: Synchronous Serial Interface
• BiSS Interface: Bidirectional Synchronous Serial

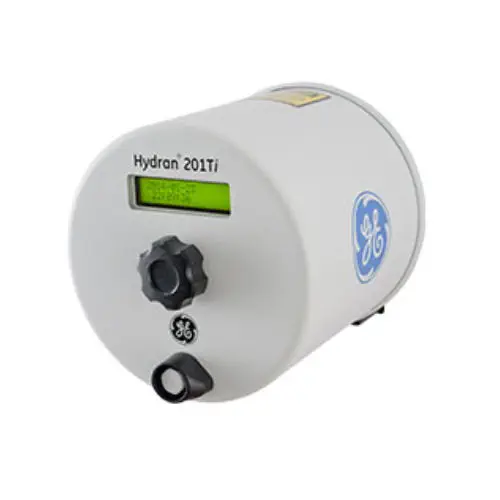

Gas Analysis Capabilities

• Gases Monitored: H₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₂H₆
• Measurement Range: 0-5000 ppm (depending on gas)
• Accuracy: ±5% of reading or ±5 ppm (whichever is greater)
• Detection Limit: 1 ppm (H₂, C₂H₂), 5 ppm (other gases)
• Measurement Interval: Configurable (1 hour to 7 days)

Moisture & Temperature Monitoring

• Moisture Range: 0-30 ppm (water content in oil)
• Moisture Accuracy: ±3 ppm or ±10% (whichever is greater)
• Temperature Sensors: 3 standard (top oil, bottom oil, ambient)
• Temperature Range: -40°C to +125°C
• Temperature Accuracy: ±1°C

Electrical Measurements

• Current Measurement: 0-100% of rated current
• Current Accuracy: ±0.5% of full scale
• Voltage Measurement: 0-120% of rated voltage
• Voltage Accuracy: ±0.5% of full scale
• Power Measurement: Active, reactive, apparent power

Power Requirements

• Power Supply: 85-265V AC/DC
• Power Consumption: 15W maximum
• Backup Power: Optional battery backup (72 hours)
• Power Factor: >0.9
• Inrush Current: <20A for 10ms

Communication Capabilities

• Ethernet: 10/100Base-T, TCP/IP
• Serial: RS-485, RS-232
• Wireless: Optional 4G/LTE, Wi-Fi
• Protocol Support: Modbus TCP/RTU, DNP3, IEC 61850
• Data Logging: 10 years of historical data

Environmental Specifications

• Operating Temperature: -40°C to +70°C
• Storage Temperature: -55°C to +85°C
• Humidity: 5% to 100% (condensing allowed)
• Enclosure Rating: IP66 (NEMA 4X)
• Altitude: Up to 3000 meters above sea level

Safety & Certification

• Safety Certification: IEC 61010-1, UL 61010-1
• EMC: IEC 61000-6-2, IEC 61000-6-4
• Hazardous Area: ATEX, IECEx (optional)
• CE Marking: Yes
• CSA Certification: Yes

Power Transmission & Distribution

Ideal for monitoring power transformers in transmission and distribution networks. Provides critical insights for grid reliability and helps prevent cascading failures that could impact large service areas.

Industrial Power Systems

Well-suited for industrial facilities with critical power infrastructure. Monitors transformers in manufacturing plants, refineries, chemical facilities, and other industrial environments where downtime is costly.

Gas Analysis Technology

• Technology: Micro-Gas Chromatography
• Column Type: Multi-capillary columns
• Detector: Thermal Conductivity Detector (TCD)
• Calibration: Automatic self-calibration
• Sample Flow: 1-2 mL/min

Moisture Measurement Technology

• Technology: Aluminum Oxide Sensor
• Measurement Principle: Capacitance change
• Response Time: <10 minutes (90% response)
• Drift: <1% per month
• Reference Method: Karl Fischer titration

Temperature Sensor Details

• Sensor Type: PT100 RTD (Class A)
• Connection: 3-wire configuration
• Response Time: <30 seconds
• Immersion Length: 150mm standard
• Sheath Material: 316 Stainless Steel

Power Requirements

• Input Voltage: 24V DC ±10%
• Input Current: 5A maximum
• Power Consumption: 30W maximum
• Power Distribution: Multiple isolated outputs
• Reverse Polarity Protection: Yes

I/O Capabilities

• Digital Inputs: 16 channels, 24V DC
• Digital Outputs: 16 channels, 24V DC, 0.5A per channel
• Analog Inputs: 8 channels, 0-10V / 4-20mA
• Analog Outputs: 4 channels, 0-10V / 4-20mA
• Communication Ports: 2 x Ethernet, 1 x Serial

Performance Specifications

• Response Time: <1ms for digital inputs
• Update Rate: 1ms minimum scan time
• Input Filter: 0.1ms to 100ms programmable
• Output Delay: 0ms to 10s programmable
• Diagnostic Coverage: >90%

Input Circuit Details

• Digital Inputs: Optically isolated, 24V DC
• Input Current: 7mA per channel
• Turn-On Voltage: 15V DC minimum
• Turn-Off Voltage: 5V DC maximum
• Input Impedance: 3.3kΩ

Output Circuit Details

• Digital Outputs: Transistor outputs, 24V DC
• Output Current: 0.5A per channel, 4A total
• Short Circuit Protection: Yes, electronic
• Overload Protection: Yes
• Output Configuration: Sourcing (PNP)

I/O Specifications

• Digital Inputs: 16 channels, 24V DC
• Digital Outputs: 16 channels, 24V DC, 0.5A per channel
• Analog Inputs: 8 channels, 0-10V / 4-20mA
• Analog Outputs: 4 channels, 0-10V / 4-20mA
• Pulse Inputs: 4 channels, 0-10kHz

Pharmaceutical Manufacturing

Designed for pharmaceutical production environments requiring strict control and documentation. Supports FDA compliance and cGMP requirements for critical manufacturing processes.

Input Circuit Details

• Digital Inputs: Optically isolated, 24V DC
• Input Current: 7mA per channel
• Turn-On Voltage: 15V DC minimum
• Turn-Off Voltage: 5V DC maximum
• Filter Time: 1ms (adjustable)

Output Circuit Details

• Digital Outputs: Transistor outputs, 24V DC
• Output Current: 0.5A per channel, 4A total
• Short Circuit Protection: Yes, electronic
• Overload Protection: Yes
• Response Time: <1ms

Analog Input Specifications

• Resolution: 16-bit
• Accuracy: ±0.1% of full scale
• Input Ranges: 0-10V, 4-20mA (selectable)
• Input Impedance: 100kΩ (voltage), 250Ω (current)
• Sampling Rate: 1000 samples/second

Physical Specifications

• Dimensions: 120 x 160 x 80 mm
• Weight: 0.8 kg (approx.)
• Mounting: 35mm DIN rail
• Terminal Type: Spring clamp terminals
• Wire Size: 0.5-2.5mm²

Power Requirements

• Primary Power: 100-240V AC, 50/60Hz
• Secondary Power: 24V DC (optional)
• Power Consumption: 15W maximum
• Backup Power: Internal battery, 72 hours typical
• Power Factor: >0.9

Monitoring Parameters

• Dissolved Gas Analysis: H₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₂H₆
• Moisture Content: ppm H₂O in oil
• Temperature: Top oil, winding (optional)
• Pressure: Gas pressure, oil pressure
• Acoustic Emissions: Partial discharge detection

Measurement Ranges

• Hydrogen (H₂): 1-5000 ppm
• Carbon Monoxide (CO): 10-10000 ppm
• Acetylene (C₂H₂): 0.1-1000 ppm
• Moisture: 0.5-50 ppm
• Temperature: -40°C to 125°C

Accuracy & Resolution

• Gas Analysis: ±5% of reading or ±1 ppm (whichever is greater)
• Moisture: ±2 ppm or ±5% of reading
• Temperature: ±1°C
• Pressure: ±0.5 kPa
• Data Resolution: 16-bit

Communication Interfaces

• Ethernet: 10/100Base-T, TCP/IP, Modbus TCP
• Serial: RS-485, Modbus RTU
• Wireless: 4G LTE, Wi-Fi (optional)
• Protocol Support: IEC 61850, DNP3, Modbus
• Web Interface: HTML5, SSL/TLS encryption

Power Requirements

• Operating Voltage: 10-32V DC
• Power Consumption: 15W maximum
• Voltage Regulation: Internal voltage regulators
• Reverse Polarity Protection: Yes
• Transient Protection: Meets SAE J1113

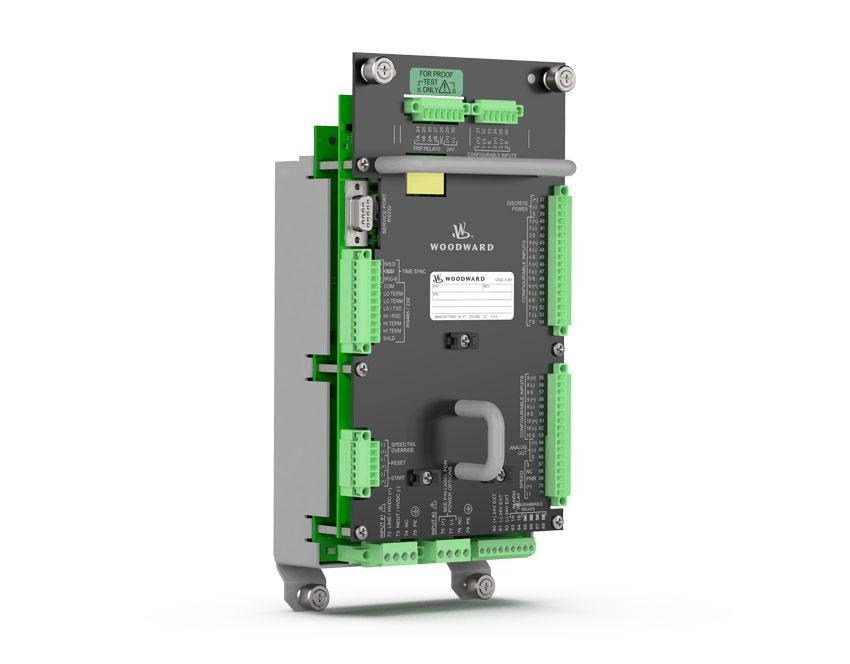

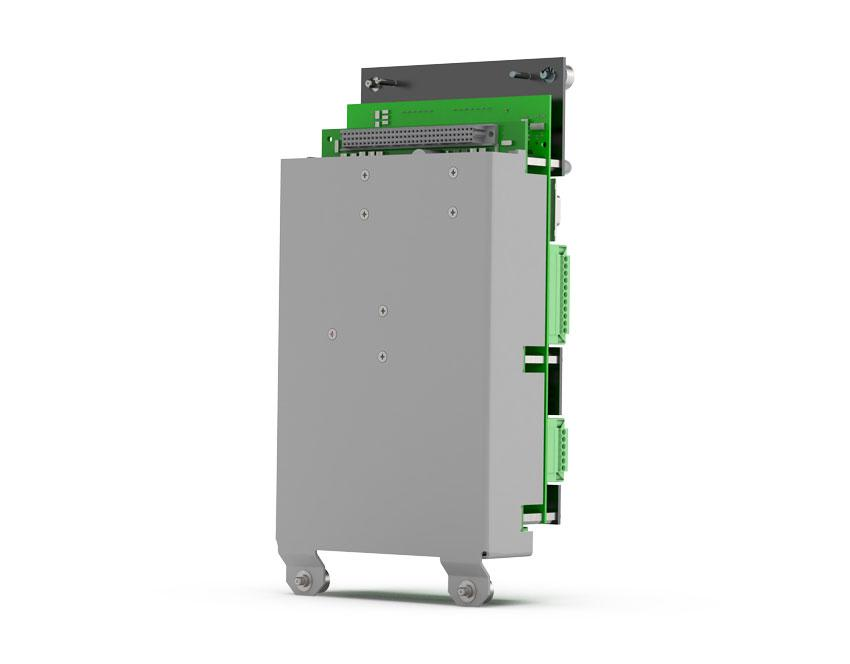

Control Capabilities

• Speed Control Range: 50-3000 RPM
• Speed Regulation: ±0.25% (steady state)
• Load Sharing Accuracy: ±1% of rated load
• Synchronization Accuracy: ±0.05 Hz
• Response Time: Adjustable, 50-500ms

Input/Output Specifications

• Analog Inputs: 8 channels (0-5V, 0-20mA, thermocouple)
• Digital Inputs: 12 channels (24V DC)
• Analog Outputs: 4 channels (0-20mA, 0-5V)
• Digital Outputs: 8 channels (relay, solid state)
• PWM Outputs: 2 channels (for fuel valve control)

Environmental Specifications

• Operating Temperature: -40°C to 70°C
• Storage Temperature: -55°C to 85°C
• Humidity: 5% to 95% non-condensing
• Shock: 30g, 11ms duration
• Vibration: 10-2000Hz, 10g maximum

Communication Interfaces

• CAN Bus: ISO 11898, SAE J1939
• RS-485: Modbus RTU/ASCII
• RS-232: Service port, ASCII protocol
• Ethernet: Optional, Modbus TCP/IP
• USB: Configuration and firmware updates

Processor & Memory

• Processor: 32-bit RISC microcontroller
• Flash Memory: 512KB program memory
• RAM: 64KB data memory
• EEPROM: 8KB non-volatile memory
