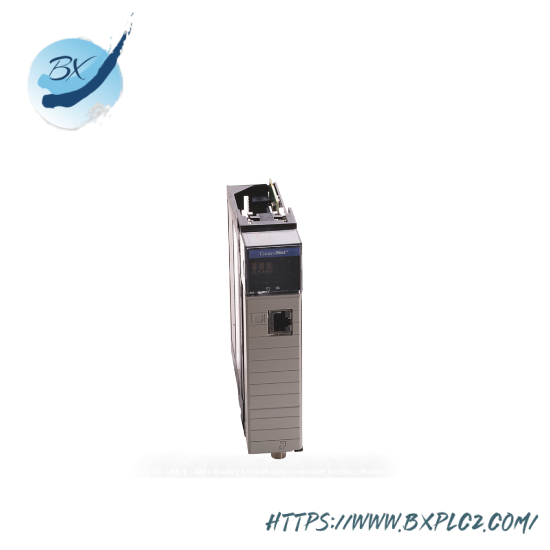

AB 1756-CNB/D ControlLogix ControlNet Bridge Module

Model Type:Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CNBD

Communication Protocol:ControlNet

Amperage Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous)

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, etc.

Temperature Range:0 – 60 DEG C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection:Ethernet

USB Port:No USB interface

    The Allen-Bradley 1756-CNBD ControlNet Bridge Module is designed for seamless integration into industrial automation systems, facilitating robust data exchange between ControlLogix PLCs and ControlNet networks.

    Featuring advanced isolation technology, this module ensures reliable communication even in harsh industrial environments, reducing the risk of signal degradation.

    With its open type enclosure, the module is compact yet durable, suitable for various installation scenarios without compromising on performance.

    Equipped with efficient RFI suppression measures, it mitigates electromagnetic interference, ensuring stable operation amidst complex industrial settings.

    This versatile module supports dual communication channels, providing redundancy and enhancing system reliability, crucial for critical applications where downtime cannot be tolerated.

    Comprehensive testing at 500 VAC for 60 seconds ensures the module’s reliability under extreme conditions, backed by Allen-Bradley’s commitment to quality and safety standards.
