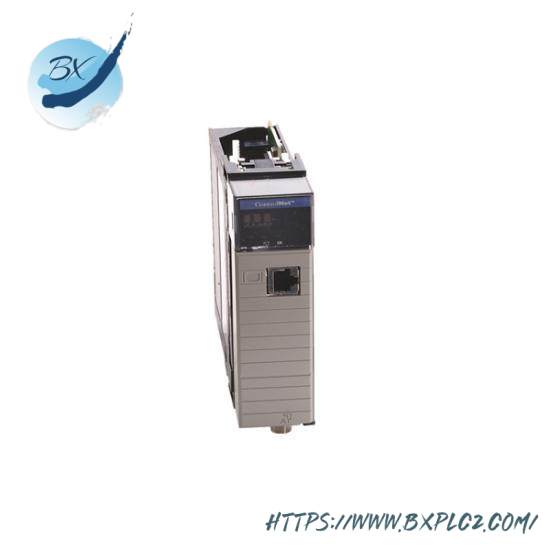

AB 1756-CNBR ControlLogix Redundant Communication Module

Model Type:Redundant

Number of Channels:2

Current Rating:Drawn: 970 MA At 5.1 VDC, 1.7 MA At 24 VDC

Isolation:30 V (Continuous)

Communication Protocol:ControlNet A/B to Backplane

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, 10 V/M With 200 HZ 50% Pulse 100% AM At 900

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet, USB Port

Certification:Type tested at 500 VAC for 60 SEC

    This module is designed for redundant communication, ensuring reliability and uptime in critical industrial applications.

    Featuring two channels for ControlNet A/B to backplane communication, it supports seamless data exchange between devices.

    With continuous isolation of 30 V, this module safeguards against electrical interference, ensuring robust performance under various environmental conditions.

    Equipped with an open type enclosure, it provides easy access for maintenance and installation, while its Ethernet and USB port facilitate versatile connectivity options.

    RFI suppression measures are implemented to protect against electromagnetic interference, guaranteeing stable operation in noisy environments.

    Designed for durability, it withstands vibrations and shocks, making it suitable for harsh industrial environments. This makes the Allen-Bradley 1756-CNBR ControlLogix Redundant Communication Module an indispensable part of any modern industrial automation system.
