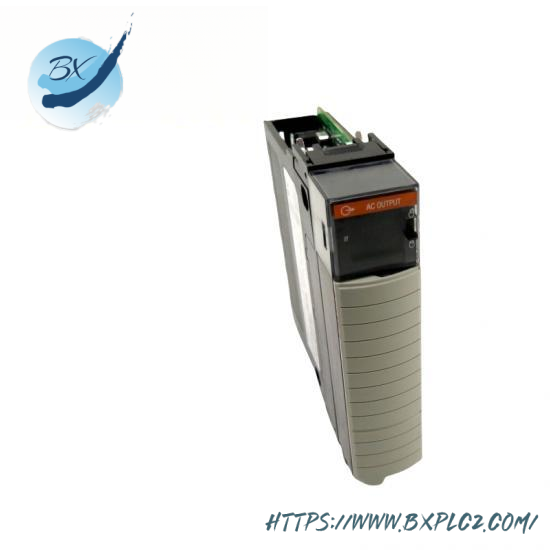

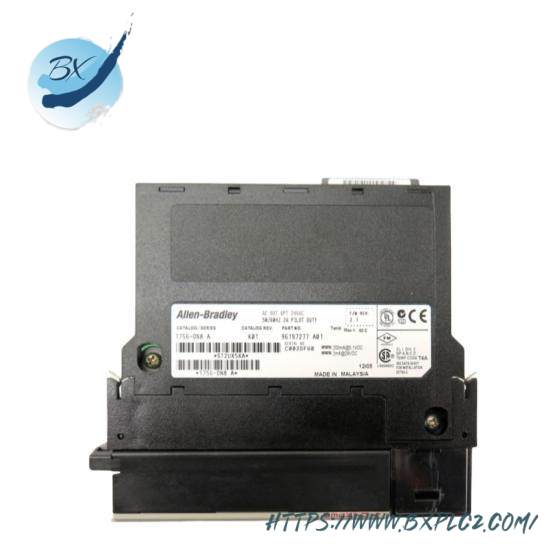

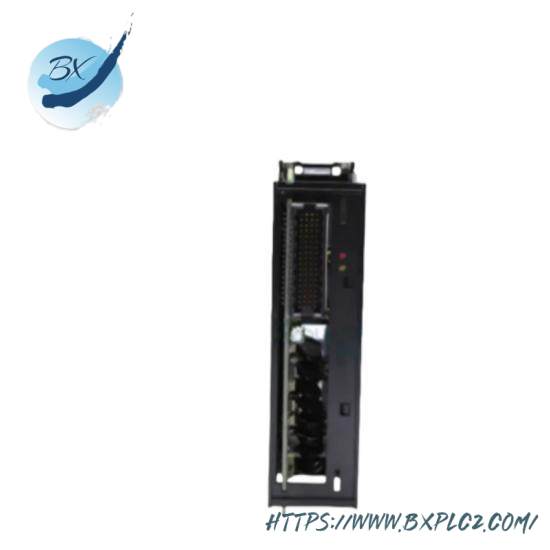

AB 1756-ON8 ControlLogix Digital Output Module

Model Type:Digital Output Module

Manufacturer:Allen-Bradley

Model Number:1756-ON8

Number of Outputs:8

Voltage Rating:DC 24V

Current Rating:5A

Communication Protocol:ControlLogix

Environmental Conditions:IP20 (NEMA 1)

Operating Temperature:-40°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:2.3 x 5.2 x 1.0 inches

Weight:0.3 pounds

    The Allen-Bradley 1756-ON8 ControlLogix Digital Output Module is designed to enhance the performance of industrial automation systems by delivering precise and dependable control over outputs. This module supports up to eight single-ended or differential outputs, providing flexibility for various control scenarios. Its ability to operate within a wide temperature range (-40°F to 149°F/-40°C to 65°C) ensures robust performance in diverse environments.

    With compatibility for ControlNet and EtherNet/IP protocols, the 1756-ON8 seamlessly integrates into existing network infrastructures, facilitating efficient communication and data exchange between components. The module’s high-speed operation makes it ideal for applications requiring rapid response times and high accuracy.

    Constructed with premium-grade materials, this module ensures durability and reliability, meeting the stringent demands of industrial settings. It includes advanced safety features to prevent overvoltage and undercurrent conditions, ensuring the protection of connected devices and equipment.

    Ease of installation is another key feature, with the module designed to mount directly into a ControlLogix local chassis. Optional terminal blocks facilitate easy connection to field wiring, streamlining setup processes and reducing downtime.

    Moreover, the Allen-Bradley 1756-ON8 supports multiple output configurations, enabling customization to suit specific application requirements. Whether integrating into an existing system or being part of a new installation, this digital output module from Allen-Bradley is the optimal choice for enhancing operational efficiency and productivity in industrial automation.
