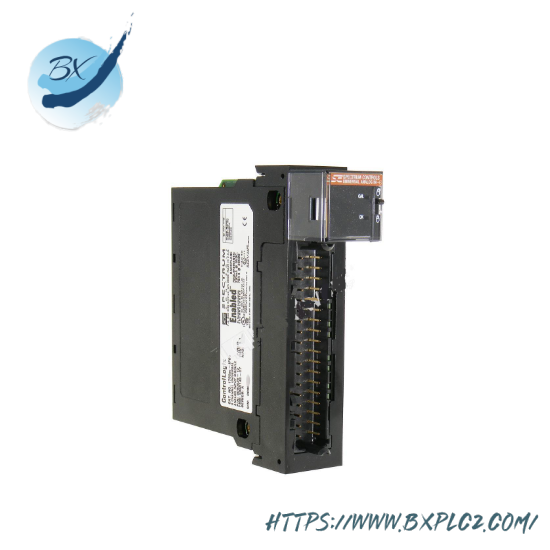

AB 1756SC-IF8U ControlLogix Analog Input Module

Operating Voltage:24 VDC

Channels:8

Analog Input Range:-10 V to +10 V

Sampling Rate:Up to 1 kHz

Communication Interface:ControlLogix Ethernet

Environmental Conditions:Temperature: -20°C to +70°C, Relative Humidity: 5% to 95% non-condensing

    The Allen-Bradley 1756SC-IF8U ControlLogix Analog Input Module is an essential component for advanced industrial automation processes, offering unparalleled accuracy and reliability. With its versatile design, it seamlessly integrates into a wide range of control systems, enabling efficient data collection from various sources.

    Featuring 8 differential input channels, this module supports both voltage and current inputs, catering to diverse measurement requirements. Its multiple data formats accommodate different system configurations, ensuring compatibility and flexibility.

    Equipped with real-time sampling capabilities, the module ensures precise measurements even under rapidly changing conditions. The inclusion of flexible input ranges allows users to configure the module to match their specific application needs, enhancing customization and adaptability.

    Designed for seamless integration into ControlNet™ and EtherNet/IP™ networks, the 1756SC-IF8U facilitates smooth data exchange within industrial automation environments. This connectivity feature is crucial for achieving real-time monitoring and control in complex systems.

    With its robust design, the module operates reliably within a wide temperature range (-20°C to +70°C), ensuring continuous performance in harsh industrial settings. Its rack-mounted design simplifies installation and maintenance, further enhancing operational efficiency.
