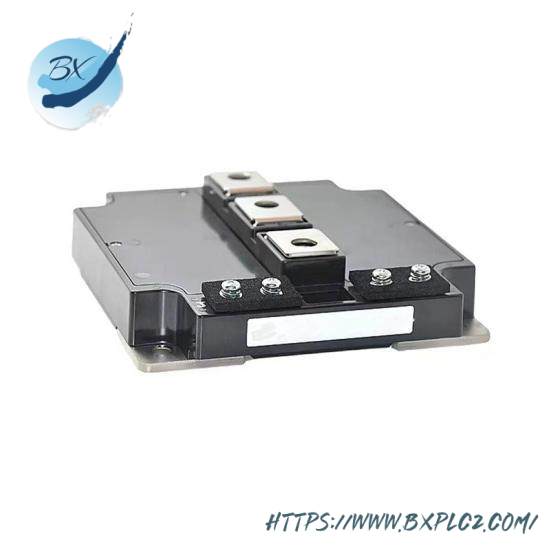

AB Control A74104-231-53E IGBT Module – High-Power Conversion Solutions

Module Type:IGBT

Manufacturer:ABB

Model Number:A74104-231-53E

Submodel:CM50TF-24H

Operating Voltage (V):Up to 2400

Switching Frequency (kHz):Up to 20

Cooling Method:Thermal Pad

Package Size:25x33x5mm

Power Rating (kW):50

Application Range:Suitable for high-power drives and inverters

    The ABB A74104-231-53E IGBT Module, CM50TF-24H is engineered for seamless integration into high-demand industrial systems, ensuring superior performance and energy efficiency.

    Featuring a robust design with an operating temperature range from -40°C to +125°C, this module is built to withstand harsh environments, enhancing system reliability.

    Equipped with high insulation resistance, it minimizes electrical interference, ensuring precise control and operation in critical applications.

    With a current rating of up to 500A and a switching frequency of up to 20 kHz, the A74104-231-53E IGBT Module offers unparalleled speed and efficiency, making it ideal for complex industrial processes.

    Designed for water cooling, this module ensures optimal thermal management, prolonging the lifespan and enhancing operational stability.

    Compliant with industry standards for both electrical and mechanical interfaces, the A74104-231-53E IGBT Module is compatible with a wide range of existing systems, facilitating easy integration and upgrade.
