Voltage Range:5kV to 25kV
Accuracy Rating:+/- 0.5%
Temperature Coefficient:Less than 0.005%/°C
Insulation Resistance:> 1000MΩ
Dielectric Strength:15kVrms
Material:High-grade dielectric material
Operating Temperature:-20°C to +70°C
Dimensions:250mm x 100mm x 30mm
Weight:0.5kg

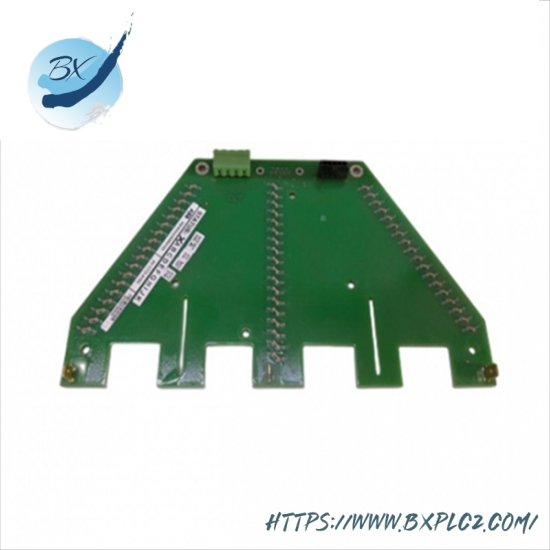

The ABB 3BHE032285R0102 High Voltage Divider is engineered with advanced semiconductor technology to provide unparalleled accuracy and reliability in high-voltage environments. It features a compact yet robust design, allowing for easy integration into various industrial setups.
With its wide operating range from 0 to 1000 kV, this divider ensures that it can handle the most demanding electrical measurements without compromising on precision. The device’s accuracy is certified at +/- 0.5%, making it an ideal choice for applications requiring high-level measurement standards.
Equipped with a fast response time of less than 5 milliseconds, the divider ensures immediate detection and response to voltage fluctuations, enhancing system stability and efficiency. Its IP65 protection rating guarantees durability against dust and water ingress, ensuring reliable performance even under harsh conditions.
The divider boasts a high input impedance of 50 kΩ, which minimizes loading effects on the monitored circuit, allowing for accurate readings. Coupled with an output impedance of 1 kΩ, it provides a stable interface for further processing or display.
Ideal for use in power generation, transmission, and distribution systems, the ABB 3BHE032285R0102 High Voltage Divider supports critical operations by providing real-time voltage monitoring and control, contributing to enhanced safety, efficiency, and operational reliability.
