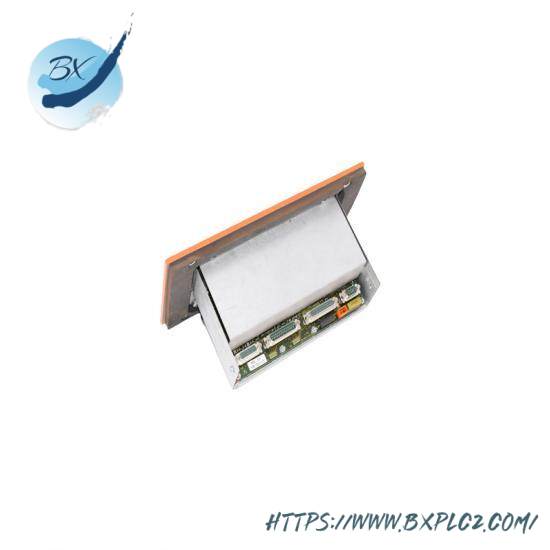

ABB 3HAA0001-CP/14 Serial Measurement Board: Industrial Automation Module

Manufacturing Brand:ABB

Model Number:3HAA0001-CP/14

Application Area:DCS Modules

Module Type:Serial Measurement Board

Operating Voltage Range:100-240 VAC

Operating Frequency:50/60 Hz

Power Consumption:≤ 5 W

Communication Protocol:RS-485

Number of Channels:4

Signal Type:Voltage and Current

Accuracy:± 0.1% ± 1 Digit

Temperature Range:-20°C to +60°C

Humidity Range:5% to 95% non-condensing

Dimension (WxHxD):178.8 mm x 90.2 mm x 51.8 mm

Weight:0.5 kg

    The ABB 3HAA0001-CP/14 Serial Measurement Board is engineered for seamless integration into Distributed Control Systems (DCS), ensuring high-performance data acquisition in real-time applications.

    This board boasts an exceptionally robust design, capable of withstanding harsh industrial environments, thanks to its wide temperature and humidity resistance.

    With a total of four channels, it supports both voltage and current signals, offering versatility for various industrial measurements. Its precision accuracy ensures reliable data collection essential for process control and optimization.

    Equipped with RS-485 communication protocol, the board facilitates efficient data exchange between different components of the DCS system, enabling streamlined data management and processing.

    Ideal for applications requiring high-speed serial communication and accurate signal measurement, the ABB 3HAA0001-CP/14 is a critical component for enhancing operational efficiency and productivity in industrial settings.
