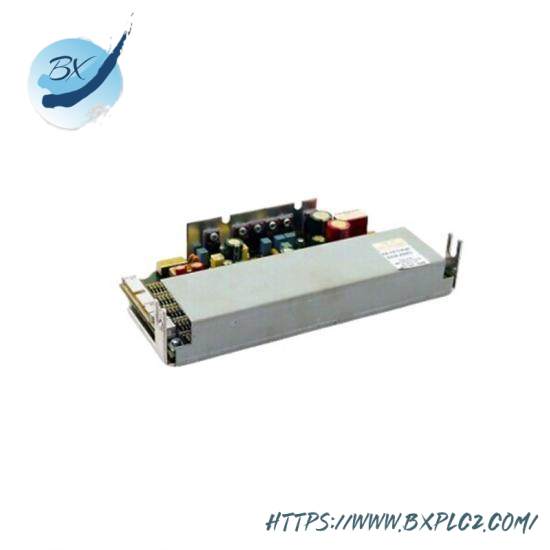

Product Type:Serial Measurement Board
Manufacturer:ABB
Model Number:3HAA3563-AMA/0
Dimensions (WxHxD):178.00mm x 101.60mm x 25.40mm
Weight:0.50kg
Operating Temperature Range:-20°C to +60°C
Power Consumption:Max 5W
Communication Protocol:RS-485
Input/Output Channels:4 Analog Inputs, 4 Digital Outputs
Compatibility:For use with ABB‘s advanced control systems and protocols
This ABB 3HAA3563-AMA/0 serial measurement board is engineered for demanding industrial settings where precise and reliable data transfer is essential. It boasts an operating temperature range from -25°C to +60°C, making it suitable for various industrial environments.
With a maximum data rate of 10 Mbit/s over RS-485 protocol, this board ensures fast and efficient communication between devices. Its compatibility with DC voltage from 12V to 30V provides flexibility in power supply options.
Featuring a low power consumption of ≤1W, the board operates efficiently without adding significant energy demands to your system. The M12 connector type ensures robust and secure data connections.
Equipped with 8 channels, the ABB 3HAA3563-AMA/0 is capable of measuring multiple signals simultaneously, enhancing its utility in complex industrial setups. The accuracy of +/-0.05% + 1LSB ensures reliability in data acquisition.
With a communication distance of up to 1500m, this serial measurement board extends the reach of your data transfer capabilities, making it ideal for long-distance industrial automation projects.
