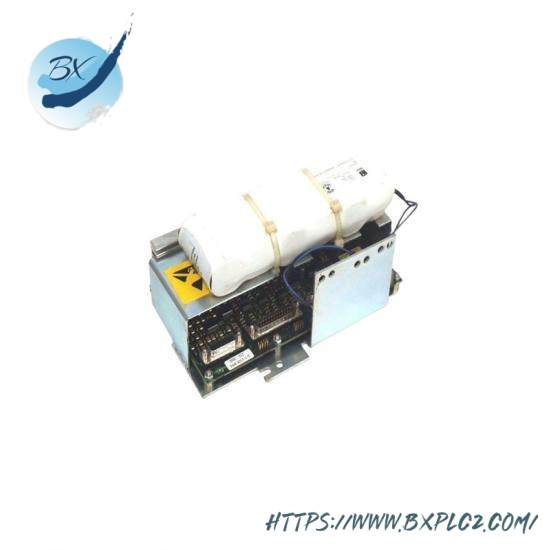

ABB 3HAB2213-1/5 Serial Measurement Board; Automation Parts

Type:Serial Measurement Board

Model:3HAB2213-1/5

Brand:ABB

Operating Temperature:-20°C to +55°C

Storage Temperature:-40°C to +70°C

Power Consumption:Less than 5W

Communication Protocol:RS-485

Dimensions (mm):150 x 100 x 40

Weight:0.2kg

Input Voltage:DC 12V

Output Signal:4-20mA

Sampling Rate:Up to 1kHz

    The ABB 3HAB2213-1/5 Serial Measurement Board is engineered for seamless integration into various industrial control systems, providing accurate and efficient serial data acquisition. Its robust design ensures reliable operation under harsh industrial conditions.

    This high-performance board supports a serial data rate of up to 1 Mbps, enabling fast and precise data transmission. It utilizes the RS-485 interface, ensuring compatibility with a wide range of industrial devices and systems.

    Equipped with a 12VDC power supply, the board is suitable for a broad spectrum of industrial applications, from manufacturing floors to process control systems. It is designed to operate within a temperature range of -20°C to +60°C, ensuring reliable performance in diverse environments.

    The ABB 3HAB2213-1/5 includes a DB9 connector for easy connection to various serial devices. It also supports operating frequencies of 50Hz and 60Hz, accommodating different industrial standards and requirements.

    With protocol compatibility for Modbus RTU, this board facilitates seamless communication between different components of an industrial automation system, enhancing overall efficiency and reliability.
