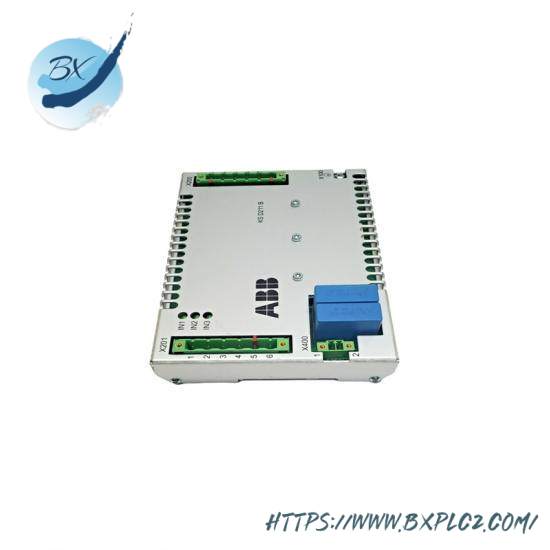

ABB CH-308802 3BHE022455R1101 – Input Coupling Unit

Model Number:CH-308802

Type:Input Coupling Unit

Manufacturer:ABB

Component:3BHE022455R1101

Power Supply Voltage:220 V

Communication Protocol:DeviceNet

Input Channels:Multiple

Signal Range:0-20 mA / 0-10 V

Operating Temperature:-20°C to +60°C

Relay Output:Available

Load Capacity:5 A @ 24 VDC

Connection Type:MODBUS RTU

Dimensions (WxHxD):160 x 100 x 90 mm

Weight:0.4 kg

    Engineered for robust industrial use, this Input Coupling Unit from ABB ensures stable operation under extreme conditions, making it an ideal choice for diverse manufacturing environments.

    Featuring advanced communication protocols such as Modbus TCP/IP, the unit facilitates efficient data exchange between different control systems, enhancing system integration capabilities.

    With a versatile range of input signals including 4-20mA and 0-10V, the unit accommodates various sensor types, providing flexibility for a multitude of applications.

    Designed with high power efficiency, it consumes less energy compared to similar units, reducing operational costs without compromising on performance.

    The compact DIN rail mounting design allows for easy installation and integration, minimizing the space required on the control panel while ensuring secure connection and accessibility.
