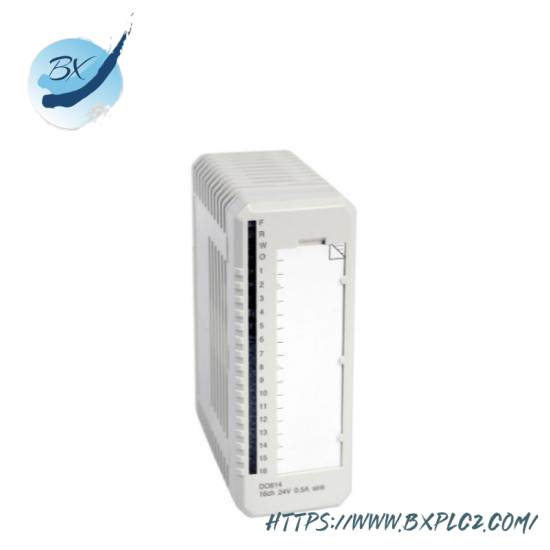

ABB DO814 3BUR001455R1 Digital Output Current Sinking Module

Model Number:DO814 3BUR001455R1

Type:Digital Output Current Sinking Module

Output Capacity:16 Channels, 1A per Channel

Operating Voltage:DC 24V

Load Compatibility:Sink Mode, Supports Pull-Down Resistors

Operating Temperature Range:-25°C to +60°C

Package Size:50mm x 30mm x 20mm

Connection Type:MODBUS Interface

Operating Current:Total Max: 16A, Per Channel Max: 1A

Communication Protocol:MODBUS RTU

    The ABB DO814 3BUR001455R1 is a versatile digital output current sinking module tailored for integration into advanced industrial automation systems. This module offers superior performance with its ability to sink currents reliably, ensuring precise control over mechanical actuators and sensors in various industrial settings.

    With a rated current of 25 mA at 24 VDC, it supports a wide range of applications requiring precise electrical control. Its robust design withstands harsh environmental conditions, from -25°C to +60°C, making it suitable for diverse industrial environments.

    Featuring an RS-485 communication interface, the module ensures efficient data exchange with other components in the system, facilitating seamless integration and enhanced operational efficiency. The M12 connector type provides a secure and durable connection, while the panel mount design ensures easy installation and maintenance.

    Equipped with 16 channels, this module can handle multiple control tasks simultaneously, enhancing productivity and reducing downtime. Its compact size, measuring just 74 x 48 x 95 mm, allows for space-efficient installation in tight spaces within industrial setups.

    Optimized for energy efficiency and reliability, the ABB DO814 3BUR001455R1 is backed by ABB’s industry-leading support and service network, ensuring peace of mind for long-term operations in critical industrial applications.
