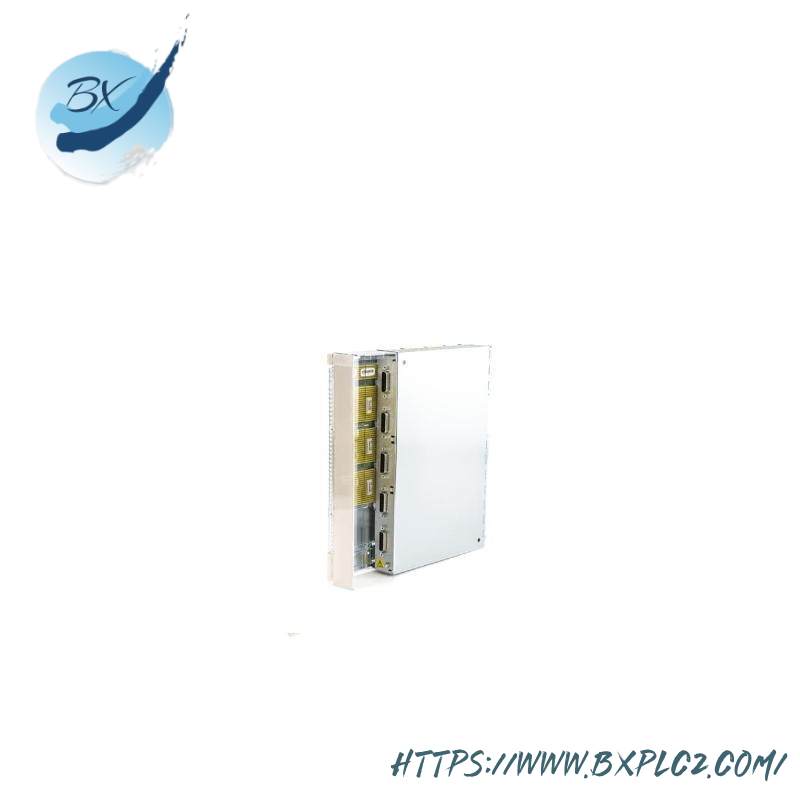

ABB DP620 3BHT300016R1 High Speed Counter Module

Operating Voltage:220 V

Output Frequency:Up to 30 kHz

Input Resolution:1 µs

Counter Channels:Up to 16 channels

Counter Modes:Flexible, configurable

Communication Interface:Modular Design for easy integration

Power Consumption:Max 10 W

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Enclosure Type:IP20

    The ABB DP620 3BHT300016R1 module is a high-speed counter specifically designed for industrial automation tasks where precision and reliability are paramount. It boasts an operating voltage of 220V and can output frequencies up to 30 kHz, making it ideal for a wide range of applications.

    With a resolution of 0.1 microseconds, this module ensures exceptional accuracy in counting processes, which is critical in industries such as manufacturing, robotics, and process control. The module supports up to 8 channels, allowing for flexible configuration based on the specific needs of the application.

    Featuring an impressive counter range up to 2^31 counts, it can handle extensive counting tasks without any limitations, ensuring that it caters to both simple and complex automation scenarios. The ±0.01% accuracy specification guarantees reliable performance, even under challenging environmental conditions.

    Compact and lightweight, the DP620 3BHT300016R1 measures 175.26 mm x 35.56 mm x 297.18 mm, making it easy to integrate into existing systems without compromising on space. It weighs just 0.6 kg, ensuring that it remains portable and convenient for installation.

    Manufactured by ABB, a global leader in industrial automation, this module benefits from the company’s expertise in developing high-quality, durable, and efficient products. It is compatible with various ABB PLC systems, offering seamless integration and enhanced functionality within the broader automation ecosystem.
