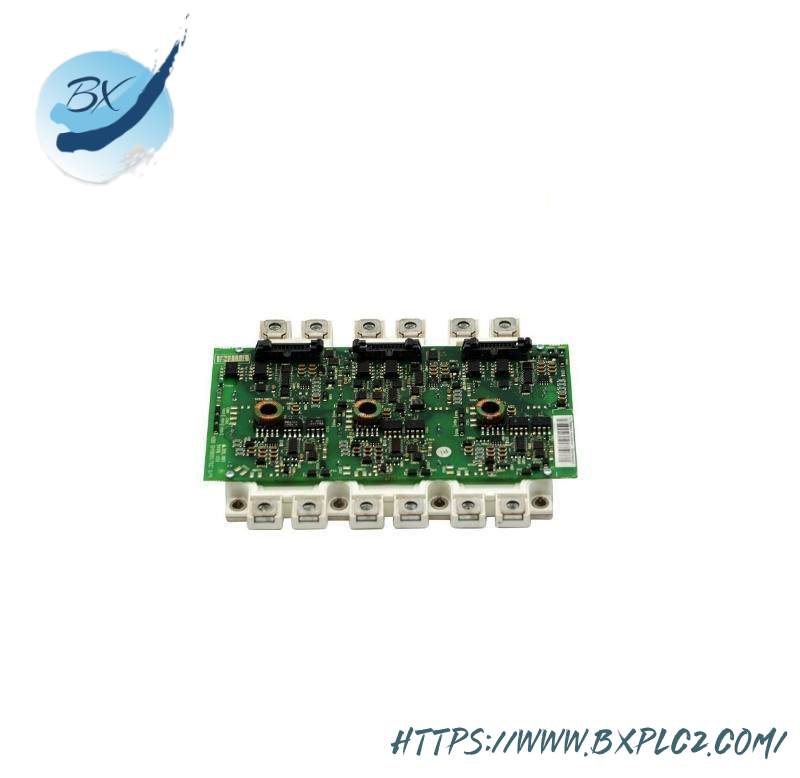

ABB FS450R12KE3/AGDR-61C – High-Power IGBT Module for Industrial Control Systems

Operating Voltage:600V DC

Maximum Continuous Current:1200A

Peak Short-Time Current:2400A

Switching Frequency:20 kHz

Cooling Method:Thermal Pad with Forced Air Cooling

Insulation Class:Class H (180°C)

Weight:2.3 kg

Dimensions (WxHxD):160mm x 110mm x 32mm

Certification:CE, UL, CSA

Series Compatibility:ABB Inverter Series 450

    Integrating cutting-edge semiconductor technology, the ABB FS450R12KE3/AGDR-61C IGBT Module is engineered to deliver exceptional performance in demanding industrial environments. Its robust design ensures reliable operation across a wide temperature range, making it ideal for applications requiring precise control over high-power electrical circuits.

    Featuring an advanced IGBT structure, this module offers high switching speeds and low conduction losses, contributing to improved system efficiency and reduced energy consumption. The high peak current capability allows for the handling of large currents without compromising on performance or system stability.

    Withstanding extreme environmental conditions, the ABB FS450R12KE3/AGDR-61C is built to endure the rigors of industrial use, ensuring minimal downtime and maintenance needs. Its compact size and efficient cooling system facilitate easy integration into existing systems, minimizing space requirements and installation complexities.

    Certified to stringent international standards, this IGBT Module complies with safety and quality norms, providing assurance of its reliability and performance in industrial applications. Whether in motor drives, renewable energy systems, or other power management scenarios, the ABB FS450R12KE3/AGDR-61C is a trusted choice for professionals seeking top-tier industrial control solutions.

    Experience unparalleled reliability and efficiency with the ABB FS450R12KE3/AGDR-61C IGBT Module. This state-of-the-art component is designed to elevate your industrial control systems to new levels of performance, offering a cost-effective solution for managing high-power electrical demands with precision and confidence.
