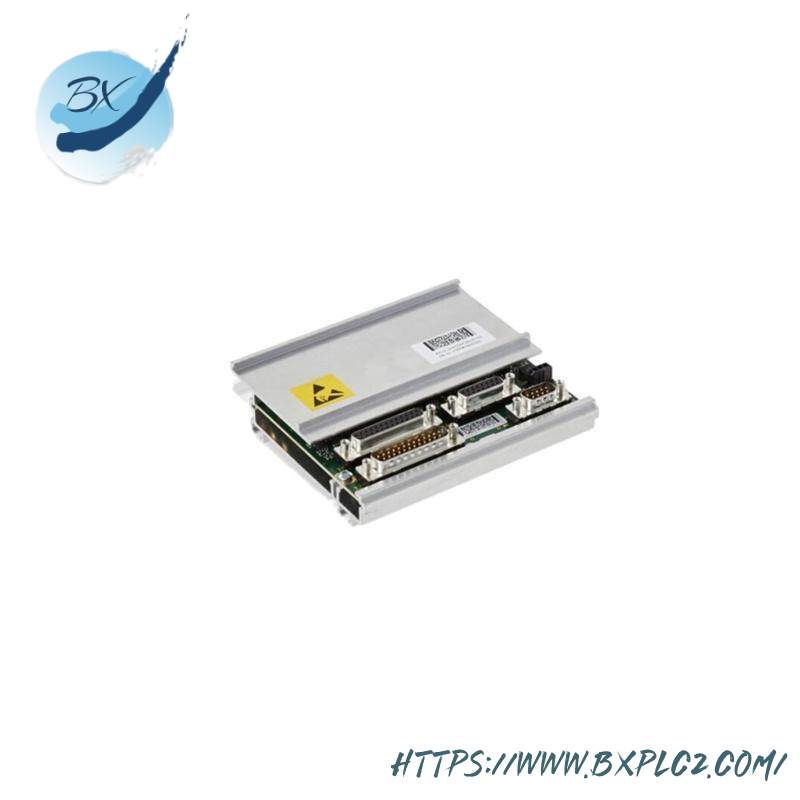

ABB SMB Measurement Board – 3HAC044168-001, 3HAC042285-001, 3HAC031115-002, Industrial Measurement Solutions

Brand:ABB

Model:3HAC044168-001 / 3HAC042285-001 / 3HAC031115-002

Type:SMB Measurement Board

Operating Voltage:DC 24V

Current Consumption:Less than 50mA

Measurement Range:±5V to ±20V or ±10mV to ±400mV

Accuracy:±0.05%

Communication Interface:RS-485 Modbus RTU

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:125mm x 85mm x 35mm

Weight:0.15kg

    Engineered with cutting-edge technology, the ABB SMB Measurement Board series ensures unparalleled accuracy and reliability in data acquisition for industrial control applications.

    Each board in the series is equipped with 8 high-precision analog input channels, capable of handling a wide range of signal types and voltages, making it suitable for various industrial environments.

    Featuring a robust design that withstands extreme temperatures from -20°C to +70°C, these boards are built to perform under demanding conditions without compromising on performance.

    With a sampling rate of up to 1kHz, the ABB SMB Measurement Boards offer quick and precise data capture, ideal for real-time monitoring and control systems.

    Compliant with international safety standards IEC 60950-1 and EN 50155, these measurement boards are certified for safe operation in both industrial and railway applications, ensuring peace of mind for users.
