Operating Temperature Range:-40°C to 70°C (-40°F to 158°F)
Relative Humidity Limit:5% to 95% non-condensing
Power Dissipation:50W
Input Supply Voltage:120VAC / 240VAC, 1-Phase, 50-60Hz
Input Current:18A RMS
Output Voltage:120VAC / 240VAC, 3-Phase, programmable frequency 0-400Hz
Continuous Output Current:10A
Peak Output Current:30A
Bus Capacitance:1880 µF
Bus Overvoltage Protection:400VDC
Energy Absorption Capability:51J at 230VAC
Auxiliary Logic Supply Voltage:5V
Dimensions:198.12 x 144.27 x 98.1 mm
Weight:2.1kg (4.6lbs)

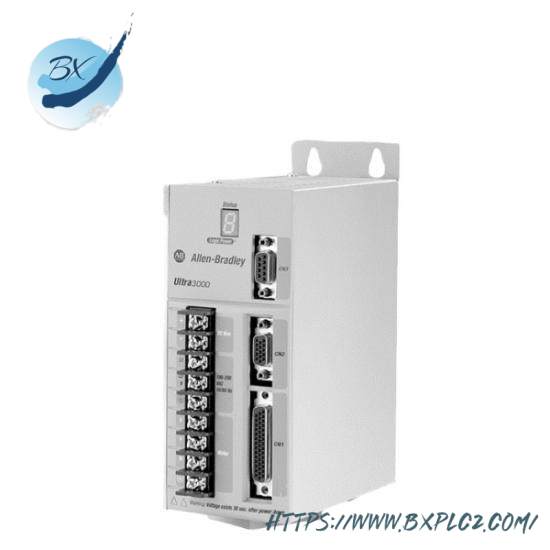

The Allen-Bradley 2098-DSD-020X is engineered to deliver unparalleled performance in high-demand industrial settings. Its robust design ensures reliability and efficiency in applications requiring precise motion control and speed regulation.
Featuring advanced Proportional+Integral+Derivative (PID) velocity regulation, this drive offers exceptional accuracy and responsiveness. The integrated Digital PID with feed-forward capability further enhances positioning precision.
With 8 optically-isolated digital inputs and 4 optically-isolated outputs, the 2098-DSD-020X provides flexible connectivity options for various sensors and actuators. The N.O. relay outputs are rated for 30V DC with a maximum current of 1A, ensuring compatibility with a wide range of industrial components.
This digital servo drive is equipped with a user-friendly interface for easy setup and configuration. The Allen-Bradley 2098-DSD-020X supports a variety of encoder types, including sine/cosine and incremental external encoders, enabling seamless integration into existing systems.
Optimized for environments with fluctuating power conditions, the 2098-DSD-020X is built to withstand harsh industrial environments, making it an ideal choice for manufacturers seeking reliable motion control solutions. Its compact size and low weight make it easy to install and integrate into machinery.
