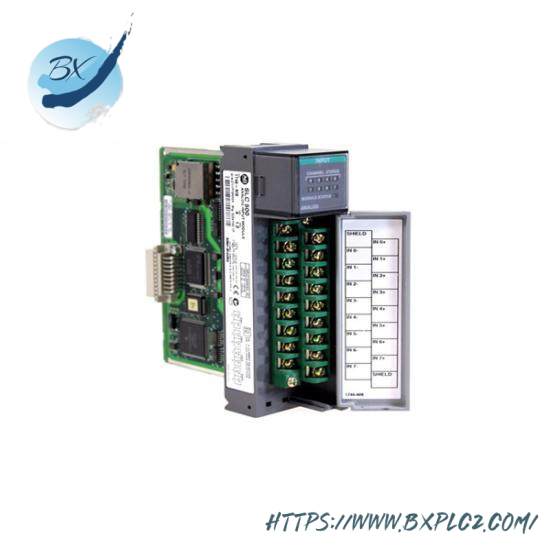

Allen Bradley 1746-NL8 High Performance Analog Input Module

Product Type:Analog Input Module

Manufacturer:Allen-Bradley

Model Number:1746-NL8

Number of Channels:8

Input Voltage Range:-10V DC to +10V DC

Absolute Input Voltage:±25V DC

Current Input Range:±5mA

Accuracy at 20°C:±0.05% FS

Operating Temperature Range:-40°C to +70°C

Power Consumption:≤ 2W

Communication Interface:RS-485

Enclosure:IP20

Isolation Rating:250V AC or 500V DC

Dimensions:2.9in x 1.3in x 0.6in

Weight:0.2lbs

    The 1746-NL8 Analog Input Module is engineered to provide reliable and accurate data acquisition in harsh industrial environments. Its robust design ensures longevity and durability, making it suitable for applications requiring precise measurements.

    Each channel offers a wide input range, accommodating various sensor outputs, whether voltage or current-based. This versatility allows for seamless integration with a multitude of industrial sensors.

    With a high sampling rate of up to 1 kHz, the module ensures minimal delay between data collection and processing, enhancing operational efficiency.

    The module’s accuracy is ±0.05% ± 2 LSB, ensuring that every piece of data collected is highly reliable, which is critical in industries where precision is paramount.

    For easy integration into existing systems, the 1746-NL8 supports Modbus RTU communication protocol, a standard in industrial automation. Additionally, its terminal block connection type facilitates quick and secure wiring.
