Power Input Voltage:120 to 220 Volts AC
Input Power:42 Watts
Internal Current Capacity:2 A at 5V dc / 0.46 A at 24V dc
Output Voltage Range:18 to 30 Volts DC
Weight:0.9 kg
Product Type:Power Supply
Model ID:1746-P1
Module Type:SLC 500
Allen Bradley Type Designation:Power Supply

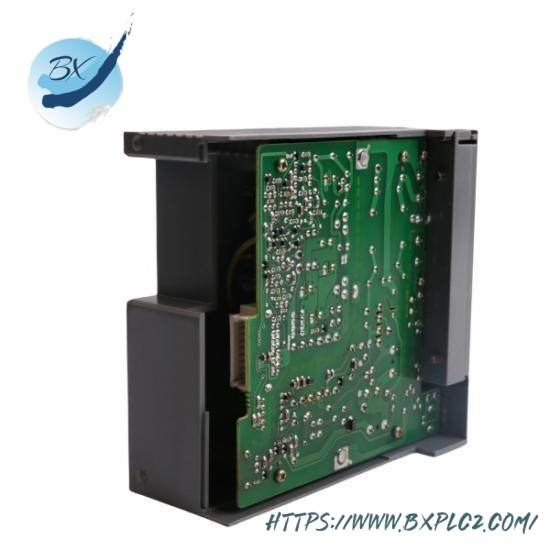

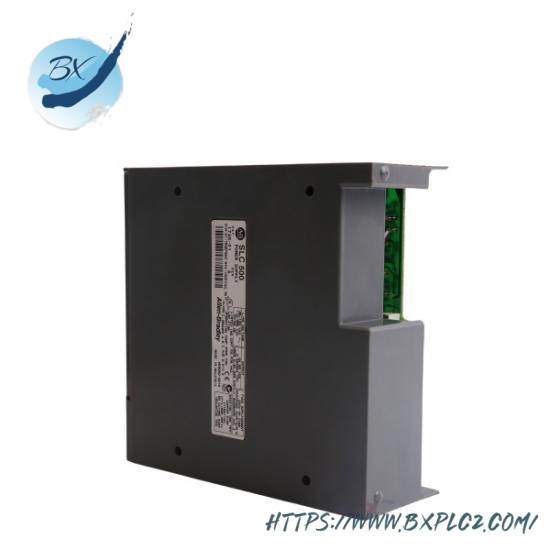

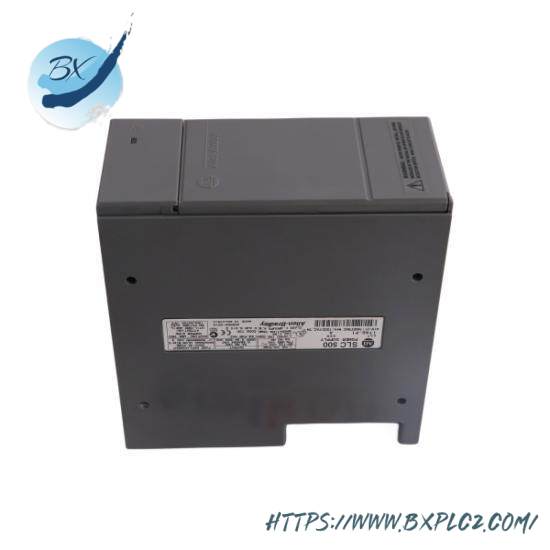

The Allen Bradley 1746-P1 Power Supply Module is specifically designed for seamless integration with Allen-Bradley SLC 500 series programmable logic controllers (PLCs). This critical component ensures consistent power supply, which is essential for maintaining system stability and performance in demanding industrial settings.
Featuring an operating voltage range of 120 to 220 Volts AC, this module is compatible with a wide variety of industrial power sources. Its internal current capacity of 2 A at 5V dc and 0.46 A at 24V dc ensures efficient power distribution to attached devices, while its output voltage range of 18 to 30 Volts DC meets the power requirements of various PLC modules.
Compact yet robust, the 1746-P1 weighs just 0.9 kg, making it easy to install and maintain. Its open type enclosure allows for quick access to components without the need for extensive disassembly, streamlining maintenance tasks. The module’s temperature rating of 0°C to 60°C guarantees reliable operation in a broad range of environmental conditions.
This power supply module is equipped with advanced protection features, including overvoltage protection, ensuring that it can withstand high-voltage spikes without damage. Additionally, the 500 VDC isolation between communication circuits and backplane enhances safety and reduces the risk of electrical interference, contributing to the overall reliability of your SLC 500 system.
For optimal performance, it is recommended to pair the Allen Bradley 1746-P1 Power Supply Module with other Allen-Bradley components from the SLC 500 series. This ensures compatibility, streamlined installation, and maximizes the efficiency of your industrial automation solutions.
