Model Type:16-point digital input
Manufacturer:Allen Bradley
Input Type:Discrete
No. of Inputs:16
Communication Cable:802.3 compliant shielded or unshielded twisted pair
Operating Voltage Range:20.4…26.4V DC
Current per Point:0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F)
Power Supply:24 VDC
Bus Current Draw, Max:200 mA
Mounting:DIN rail or panel mount
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% non-condensing relative humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Communication Speed:10/100 MBPS
Enclosure:Open type
Connection Cables:Ethernet/IP Bridge
Power Dissipation:5.1 W
Isolation:30 V continuous
Interface:Ethernet
USB Port:Present

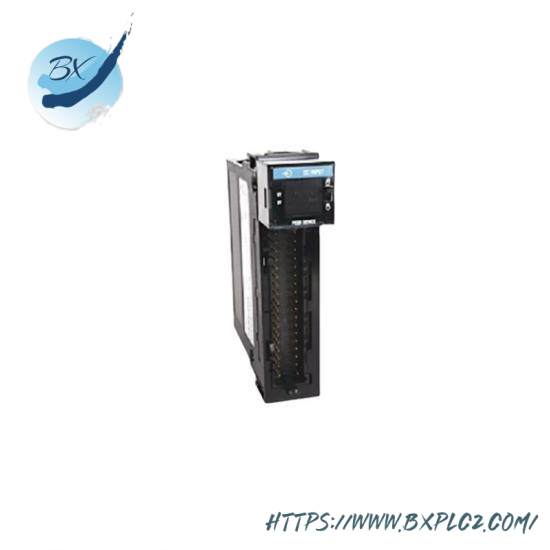

The Allen Bradley 1756-IB16IF ControlLogix 16 Point Digital Input Module is a cornerstone in the world of industrial automation, offering unmatched performance and reliability for critical applications.
Featuring 16 discrete inputs, this module is ideal for monitoring various operational conditions, ensuring precise control over machinery and processes.
Built for harsh industrial environments, it withstands extreme temperatures and humidity without compromising its operational integrity.
With a robust power supply and efficient current draw, the module ensures stable operation even under heavy load scenarios, maximizing efficiency and minimizing downtime.
The inclusion of an open-type enclosure and Ethernet/IP Bridge connection ensures seamless integration with existing network infrastructures, facilitating easy setup and management across diverse automation systems.
Equipped with a USB port for enhanced functionality, this module supports data transfer and firmware updates, streamlining maintenance and upgrade processes.
