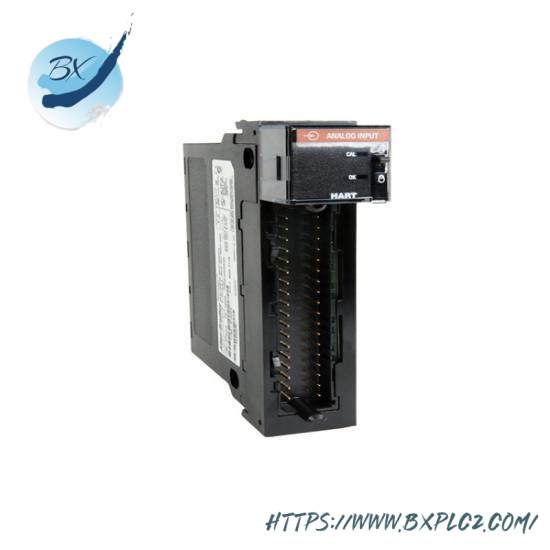

Allen-Bradley 1756-IF16H ControlLogix Analog Input Module: Precision Data Acquisition for Industrial Automation

Model Number:1756-IF16H

Manufacturer:Allen Bradley

Type:Analog Input Module

Module Format:ControlLogix

Channels:16

Input Format:Differential Voltage or Current

Data Formats:Choice of three

Input Ranges:Multiple current and voltage

Module Filter:Present

Real Time Sampling:Available

Error Detection:Under Range, Over Range, Wire-off

Process Alarms:Supported

Communication Speed:10/100 Mbps

Protocol:Ethernet/IP

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Temperature Range:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Present

Power Dissipation:6.2 Watts

Isolation:Continuous 30 V

Enclosure Type:Open Type

Compliance:802.3 Compliant Shielded or Unshielded Twisted Pair

    The Allen Bradley 1756-IF16H ControlLogix Analog Input Module is engineered to enhance the efficiency and reliability of industrial control systems. Its robust design allows seamless integration into a wide array of applications, ensuring precise signal acquisition.

    With its high-channel capacity and versatile input formats, this module caters to a broad spectrum of sensor outputs, making it suitable for various industrial environments. The inclusion of multiple data formats provides flexibility in processing diverse signal types.

    Equipped with real-time sampling capabilities, the 1756-IF16H ensures accurate and timely data acquisition, crucial for dynamic industrial processes. Its advanced error detection features, including under-range, over-range, and wire-off detection, minimize operational disruptions and enhance system reliability.

    Designed for ease of use and maintenance, the module supports Ethernet/IP communication protocols, enabling seamless integration with existing network infrastructures. The presence of an open type enclosure and compatibility with shielded or unshielded twisted pair cables ensures robust performance in challenging environments.

    Backed by Allen Bradley’s reputation for quality and innovation, the 1756-IF16H ControlLogix Analog Input Module is an indispensable component for achieving optimal performance in modern industrial automation systems. Its comprehensive feature set, combined with user-friendly design, makes it a preferred choice for engineers and manufacturers seeking to elevate their automation capabilities.
