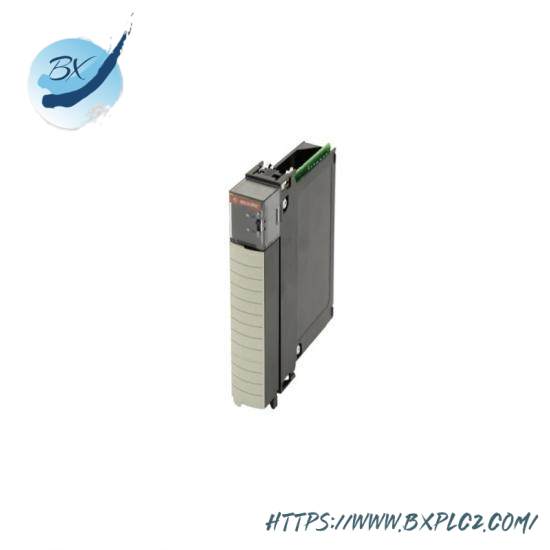

Allen-Bradley 1756-IF8 ControlLogix Analog Input Output Modules

Model Type:ControlLogix

Model Number:1756-IF8

Manufacturer:Allen-Bradley

Weight:1.00 lbs

I/O Module Type:Analog Input

Channels:8

Data Formats:Multiple

Input Ranges:Current and Voltage

Module Filter:Yes

Real Time Sampling:Available

Alarm Detection:[“Under Range”,”Over Range”,”Process Alarms”,”Rate Alarm”,”Wire-off Detection”]

Communication:HART Interface

Enclosure Type:Open Type

Connection Cables:Shielded or Unshielded Twisted Pair

Temperature Rating:-40°C to +70°C

Power Dissipation:1.5 Watts

Isolation:Continuous, 30 V

Environmental Conditions:5% to 95% non-condensing relative humidity

Vibration Resistance:Up to 2G

Shock Resistance:Up to 30G

    The Allen-Bradley 1756-IF8 ControlLogix Analog Input Output Modules are engineered for seamless integration into complex industrial automation systems, offering enhanced precision and reliability in data acquisition and control applications.

    Each module supports differential voltage or current inputs, allowing for accurate measurement in various industrial settings. The versatile choice of three data formats caters to diverse system requirements, ensuring optimal performance across different industries.

    Featuring real-time sampling, these modules provide instant feedback for critical processes, enabling timely adjustments and improving overall operational efficiency. They come equipped with under range and over range detection, as well as process alarms, ensuring safety and compliance with industry standards.

    HART communication capability allows for seamless connectivity between field devices and control systems, facilitating remote monitoring and control without the need for additional hardware. The open-type enclosure ensures robust protection against environmental factors, making it suitable for harsh industrial environments.

    With support for Ethernet/IP Bridge communication protocol and compatibility with shielded or unshielded twisted pair cables, these modules offer flexibility in installation and network integration. Their temperature rating and vibration resistance make them ideal for use in a wide range of industrial applications, from manufacturing floors to outdoor installations.
