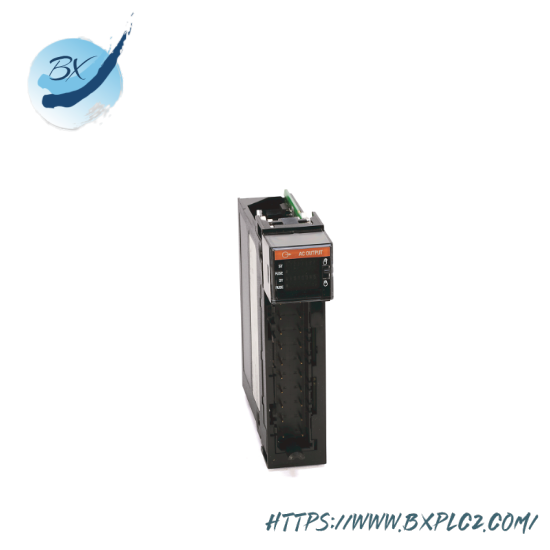

Allen-Bradley 1756-OA16 ControlLogix Digital Output Module

Model Type:ControlLogix

Model Number:1756-OA16

Manufacturer:Allen-Bradley

Output Channels:16

Operating Voltage:24 VDC

Current Rating:5.0 A

Contact Rating:50 mA

Relay Type:SPDT

Operating Temperature:-40°C to +70°C

Storage Temperature:-55°C to +85°C

Environmental Protection:IP20

Communication Interface:ControlLogix Bus

Power Consumption:5.0 W

Dimensions:90 mm x 124 mm x 114 mm

Weight:0.5 kg

    The AB 1756-OA16 ControlLogix Output Module is engineered to deliver unparalleled performance in demanding industrial environments. Its compact design and robust construction make it ideal for integration into complex automation systems.

    With a wide operating voltage range of 12-24 VDC, this module ensures compatibility across different power sources, enhancing its versatility in various applications.

    Featuring 16 channels, the 1756-OA16 provides ample output capacity for controlling a multitude of actuators, motors, or other devices requiring precise on/off control.

    Common source configuration simplifies wiring and reduces costs, making installation and maintenance more straightforward.

    Equipped with a high switching frequency of up to 1 kHz, the module ensures quick response times and smooth operation, critical for applications requiring rapid control adjustments.

    Compliance with international safety standards such as CE, UL, and CSA ensures reliability and peace of mind for users worldwide.
