Output Current (Continuous):6.1 A
Output Current (Peak):8.6 A
Input Voltage Range:324-528V rms, 3-phase
Nominal Voltage:360/480V
Velocity Loop Bandwidth:500 Hz
Current Loop Bandwidth:1300 Hz
PWM Frequency:8 kHz
Efficiency:98%
Internal Shunt Resistor:115 Ohms
Continuous Power Output:3.9 kW
Internal Shunt Peak Power:5.6 kW
Internal Shunt Continuous Power:50 W
Capacitance:150 μF
Capacitive Rating:200,000 A (rms) symmetrical
Power Dissipation:57-126 Watts
Weight:2.54 kg

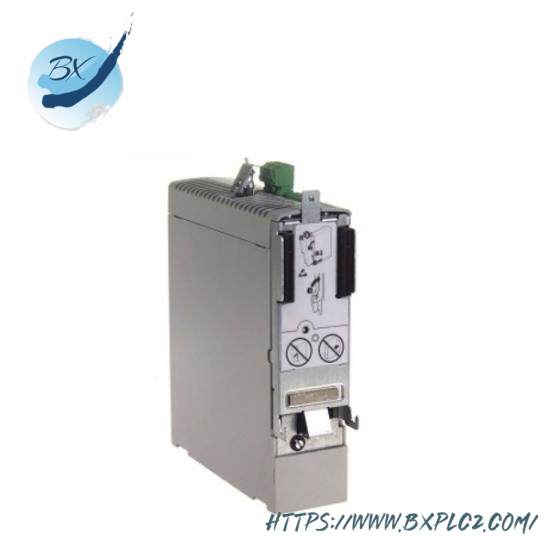

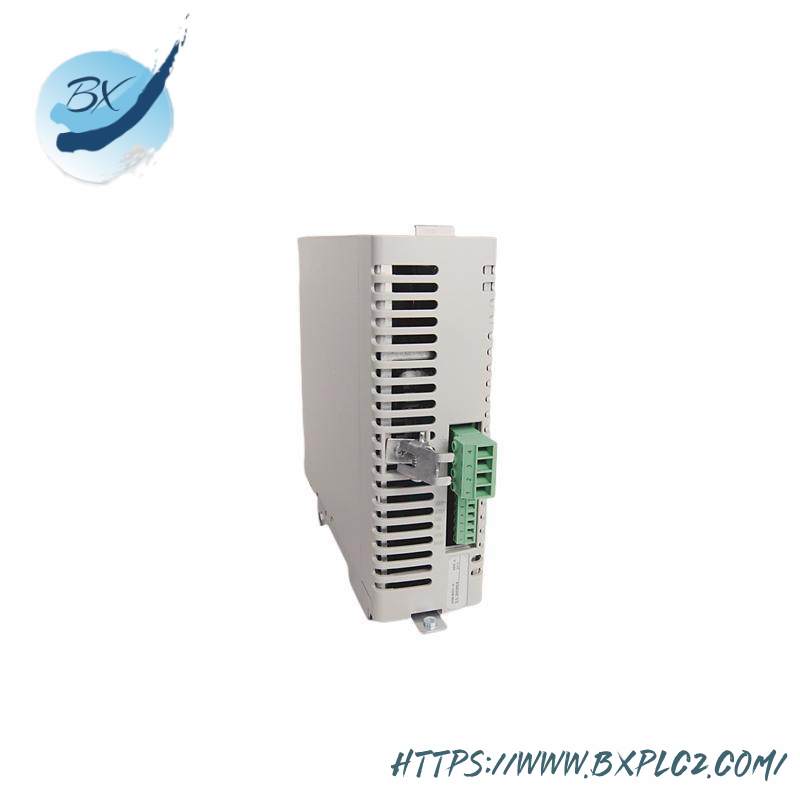

The Allen-Bradley 2094-BM01-S is a versatile and robust axis module tailored for the Kinetix 6000 Multi-Axis Drive Servo system. It boasts an impressive efficiency of 98%, ensuring minimal energy loss and maximum operational performance. Designed for industrial applications requiring precise control and reliability, this module integrates seamlessly into multi-axis drive systems. Key safety features include Safe Torque Off (STO), Safe Speed, Safe Maximum Speed, and Safe Maximum Acceleration Monitoring, all of which contribute to safeguarding personnel and equipment. With a wide input voltage range of 324-528V rms, 3-phase, the 2094-BM01-S supports a broad spectrum of industrial environments. Its advanced diagnostic capabilities provide detailed insights into operational status, helping to identify and resolve issues promptly. The built-in shunt resistor with a rating of 115 ohms ensures accurate current monitoring and protection against overloads. The module’s compact design and lightweight build make it easy to integrate into existing systems without compromising on performance. Whether you’re optimizing an assembly line or upgrading an existing setup, the Allen-Bradley 2094-BM01-S offers unparalleled precision and reliability.
