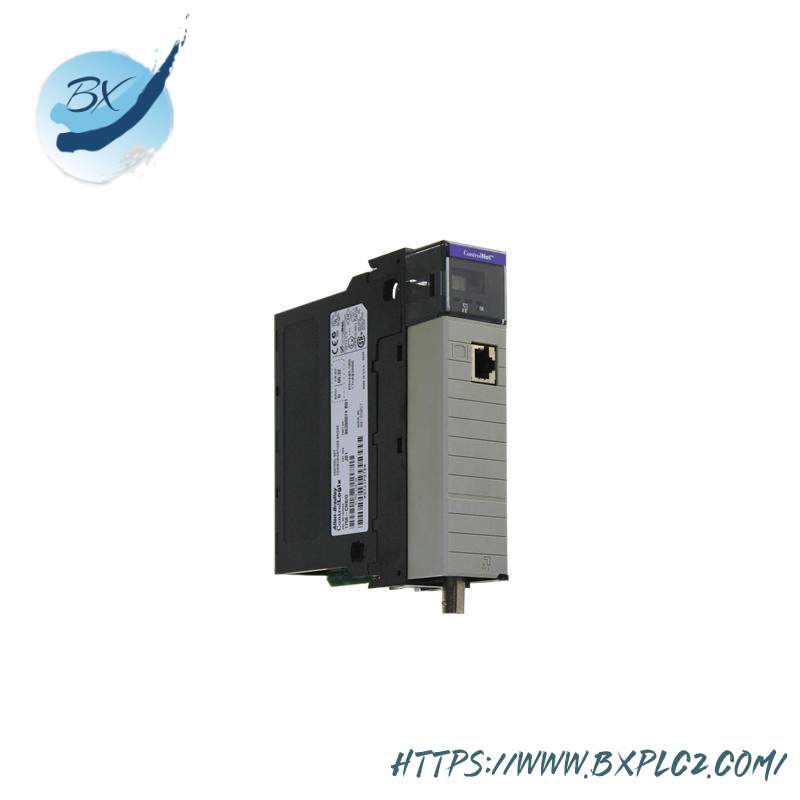

Allen-Bradley AB 1756-CNB Bridge Module – Industrial DeviceNet Communication

Model Type:DeviceNet Bridge Module

Model Number:1756-CNB

Manufacturer:Allen-Bradley

Communication Protocol:DeviceNet

Mounting:Chassis

Amperage Rating:Drawn: 400 mA at 5.1 V

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz

Operating Temperature Range:-20°C to +60°C

Input Voltage Range:12 VDC to 24 VDC

Input Current:500 mA max per input

    Engineered for high performance and reliability, the Allen-Bradley AB 1756-CNB Bridge Module seamlessly integrates ControlLogix systems with DeviceNet devices, ensuring robust industrial automation.

    Featuring 16 programmable inputs, this versatile module supports both digital and analog signals, making it suitable for a wide range of applications in manufacturing and process industries.

    With an amperage rating of up to 400mA at 5.1V, the module ensures stable power delivery across its connections, ensuring optimal device operation.

    Its open type enclosure design facilitates easy installation and maintenance, while the built-in RFI suppression mechanisms protect against electromagnetic interference, maintaining stable communication under challenging industrial conditions.

    Operational in temperatures ranging from -40°C to +70°C, the module is designed to withstand extreme environmental conditions encountered in industrial settings, ensuring continuous and dependable performance throughout its lifecycle.
