Product Type:Encoder Interface Module
Counter Resolution:32 bit
Output Voltage Range:+5 V, +15 V, or 24 V selectable with jumper
Output Voltage:±10 V
Output Current:Max. ±2 mA
Inputs:2x In INC/SSI, 1MHz, 32-bit, RS422 level, INC A, A/B/N, position, gate time, period, velocity, encoder supply 5V / 15V / 24V
Outputs:2x Out ±10V, 14-bit, 0.025% accuracy, 40µs synchronization, PreSYNC, 4x DI 24V, trigger, homing

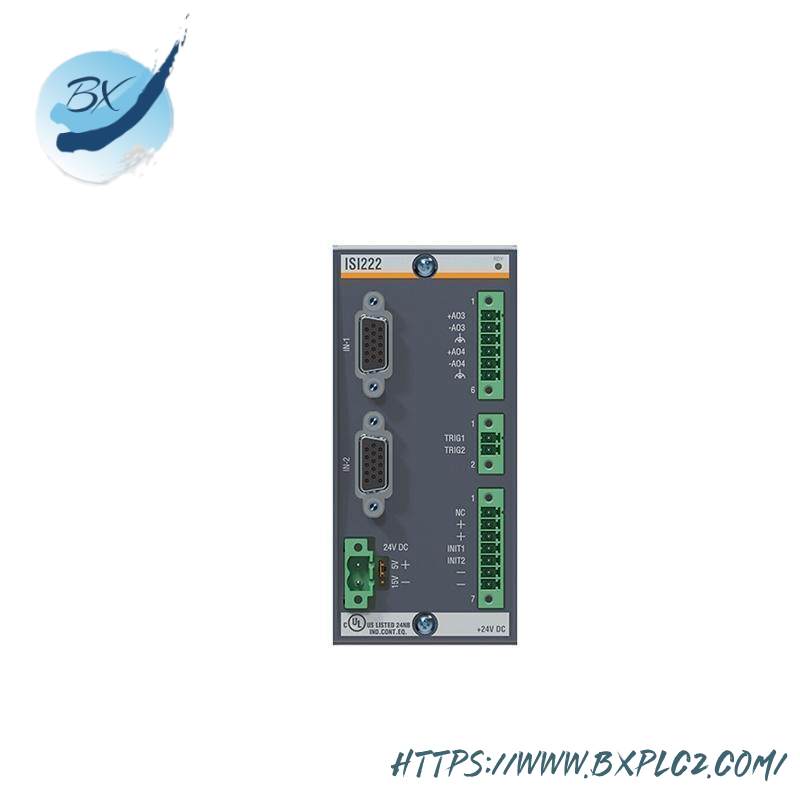

The BACHMANN ISI222 Encoder Interface Module is engineered for exceptional precision and reliability in demanding industrial settings. With a 32-bit counter resolution, it ensures ultra-accurate position measurements, essential for critical applications.
Flexible output voltage selection (5V, 15V, or 24V looped through) caters to a broad spectrum of control systems, enhancing compatibility and ease of integration.
The ±10V outputs provide robust feedback signals, enabling precise control and monitoring of mechanical components in motion.
Equipped with 2x INC/SSI inputs, the module supports high-speed data acquisition, making it suitable for fast-moving machinery and processes.
The inclusion of digital inputs (DI 24V) allows for seamless connection to external sensors and switches, enhancing system responsiveness and control capabilities.
The BACHMANN ISI222’s design is built around user convenience and efficiency, featuring synchronization and pre-SYNC support for smoother operation and enhanced system integration.
