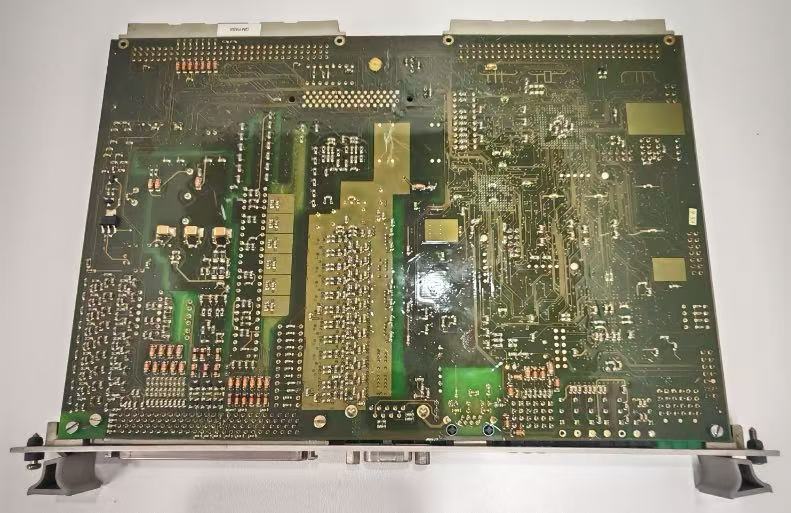

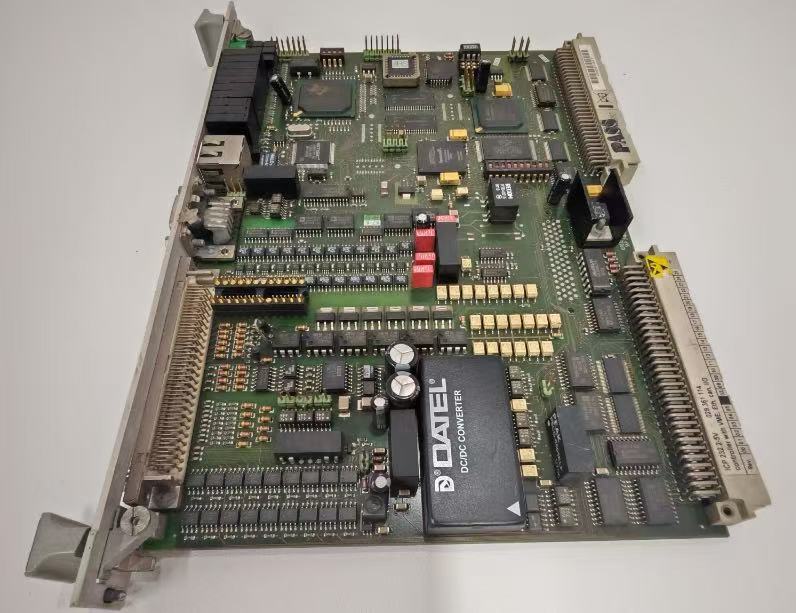

DATEL ICP232.2-5V 029.361114
Brand & Product Overview
DATEL, a subsidiary of TDK-Lambda, specializes in designing and manufacturing high-reliability power modules, signal isolators, and communication interface solutions for industrial, medical, and aerospace applications.
DATEL, a subsidiary of TDK-Lambda, specializes in designing and manufacturing high-reliability power modules, signal isolators, and communication interface solutions for industrial, medical, and aerospace applications.
The ICP232.2-5V is likely an isolated RS-232 designed to provide galvanic isolation and voltage conversion for serial communication systems. The suffix 029.361114 typically denotes a specific serial number, batch code, or customization identifier for manufacturing traceability.
Key Features
- Communication Standard: Supports RS-232 protocol, a widely used interface for point-to-point serial data transmission in industrial devices.
- Isolation: Provides electrical isolation (galvanic separation) between the input and output sides to protect against ground loops, voltage spikes, and electromagnetic interference (EMI).
- Voltage Supply: Operates with a 5V DC input/output voltage, making it compatible with low-power embedded systems and microcontroller-based applications.
- Dual-Channel Design: The “.2” in the model may indicate a dual-channel configuration, allowing simultaneous transmission and reception of two independent RS-232 signals.
- Compact Form Factor: Designed for space-constrained environments, suitable for panel mounting or integration into compact industrial equipment.
Typical Applications
- Industrial Automation: Isolating serial communication between PLCs, HMIs, and sensors to prevent ground loop issues in factory networks.
- Medical Devices: Ensuring safety and compliance with medical regulations (e.g., IEC 60601) by isolating sensitive biomedical equipment from power line noise.
- Aerospace & Defense: Providing robust, interference-resistant communication in harsh environments with extreme temperatures or electromagnetic fields.
- Test & Measurement: Protecting sensitive measurement instruments from voltage surges during data acquisition.
Technical Considerations
- Data Rate: Supports standard RS-232 baud rates (e.g., up to 115.2 kbps), depending on the module’s specifications.
- Isolation Voltage: Typically offers the minimum isolation voltage (e.g., 2.5 kV RMS) to meet industrial safety standards.
- Environmental Ratings: May include temperature tolerance (e.g., -40°C to +85°C) and resistance to vibration or moisture, suitable for rugged applications.
How to Access Detailed Specifications
- Official Documentation:
Visit the TDK-Lambda DATEL Product Page and search for “ICP232.2-5V” to download the datasheet, which includes pinouts, electrical characteristics, and compliance certifications (e.g., CE, FCC). - Distributor Inquiries:
Contact authorized distributors like Digi-Key or Mouser using the full part number (ICP232.2-5V-029.361114) to confirm availability, pricing, and technical support. - Customization Support:
If “029.361114” indicates a custom variant, reach out to TDK-Lambda’s sales team for details on modified features (e.g., extended temperature range or specific pin configurations).
Compliance & Safety
- Meets industry standards for electromagnetic compatibility (EMC) and safety, such as IEC 61000-4 for EMI/EMS and UL/cUL for component safety.
- Suitable for use in systems requiring certified isolation, such as medical devices or industrial control panels.
For precise technical parameters and application-specific guidance, always refer to the official datasheet or contact TDK-Lambda’s technical support team.
