Control Power nominal:20 VA
Control Power maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:Class I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:approx. 4.5 kg
Optional Metering Feature:Yes
RTD Inputs:12

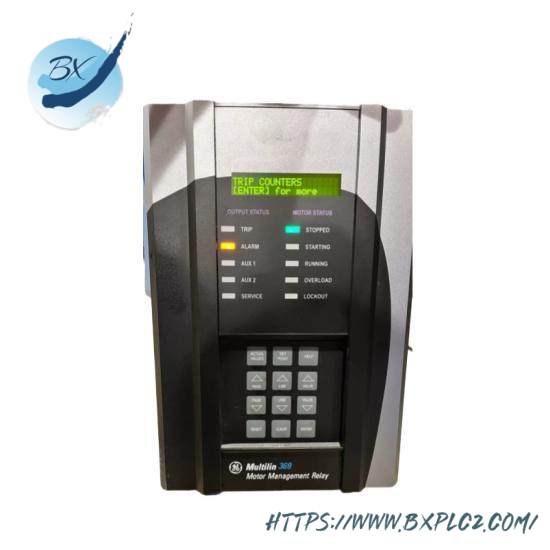

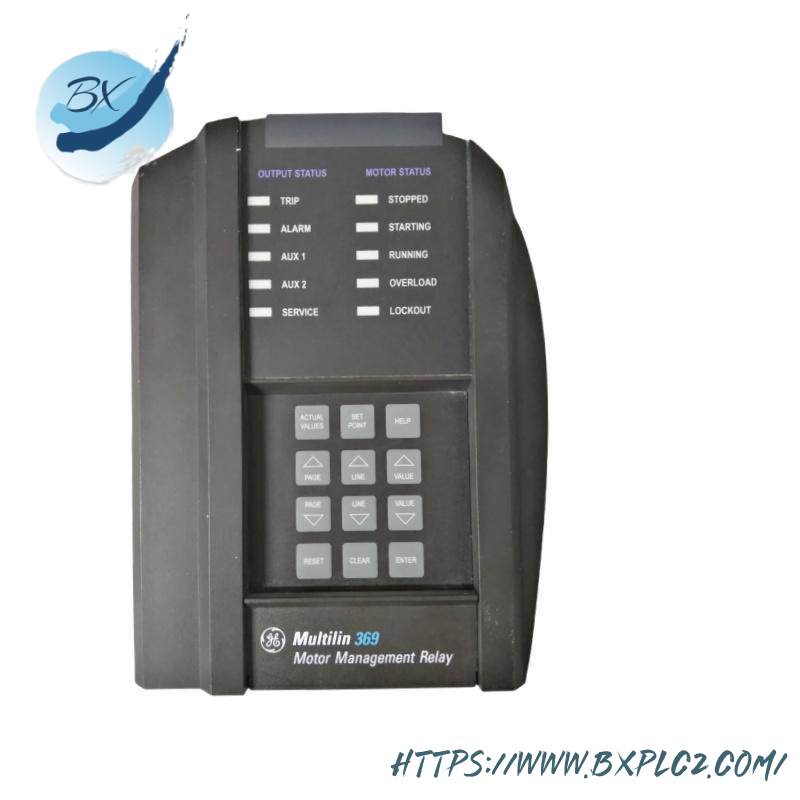

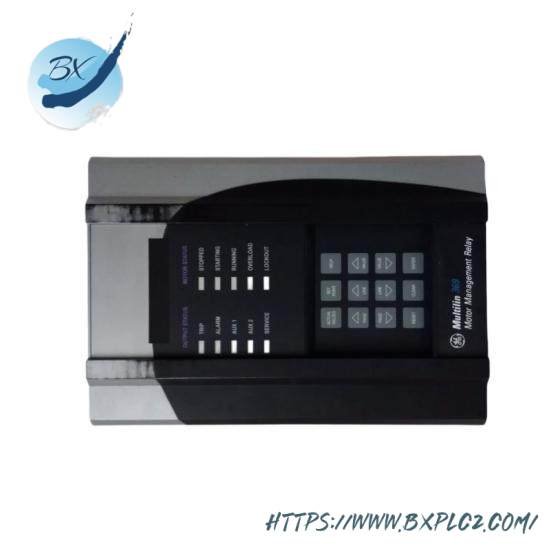

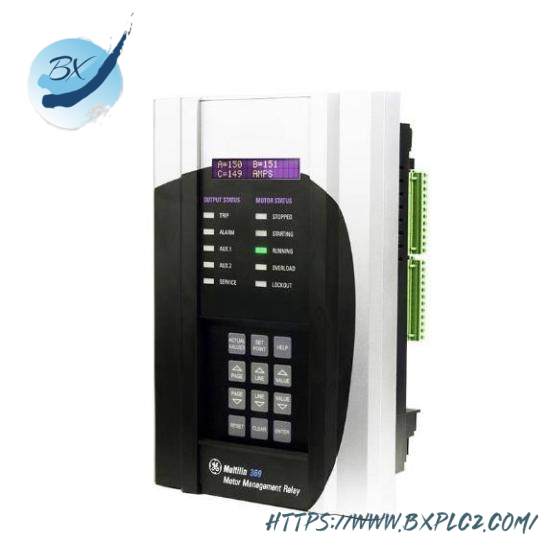

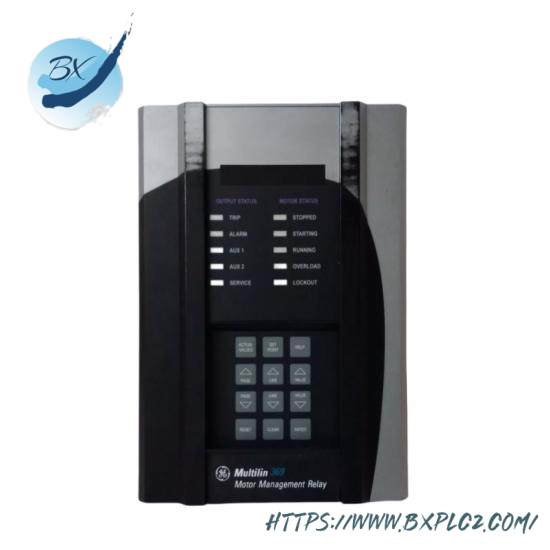

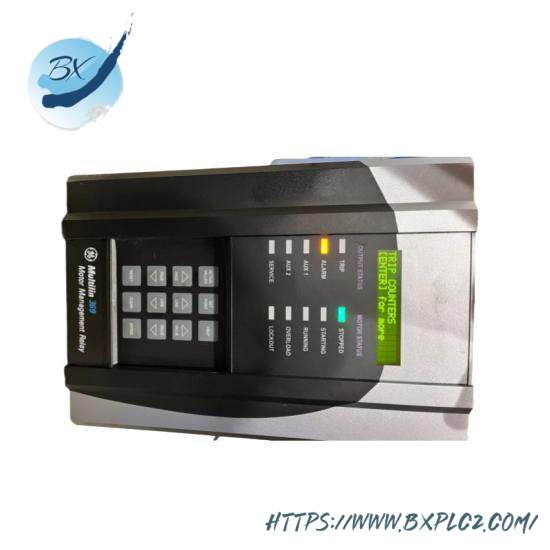

The GE 369-HI-R-M-0-0 is a cutting-edge motor management relay that ensures reliable operation and efficient maintenance of medium-sized motors. By leveraging waveform capture and event reporting, this device minimizes downtime and enhances overall system reliability. Integrated metering capabilities provide real-time monitoring and data logging, allowing operators to make informed decisions. The 12 RTD inputs enable precise temperature measurement, ensuring optimal performance under varying conditions. With its robust design and advanced features, the 369-HI-R-M-0-0 is an indispensable tool for industrial control applications. The optional metering feature further enhances its utility by offering comprehensive electrical parameter tracking. This makes it an ideal choice for facilities looking to streamline their motor management processes.
