Control Power Range:50-300 VDC / 40-265 VAC
Digital/Switch Inputs:6 optically isolated
Recordable Events:512
Fuse:3.15 A H 250 V
Ground Current Input Frequency:20 to 100 Hz
Maximum Altitude:2000 m (max)
Phase Current Inputs:1 A and 5 A secondary
RTD Inputs:3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, 10 Ω copper
Weight:approx. 10 lbs
Dimensions:approx: 29.6cm H x 10.7cm W x 20.5cm L
Insulation Class:I
Optional Features:12 RTD inputs, metering package, fiber optic port, harsh chemical environment option

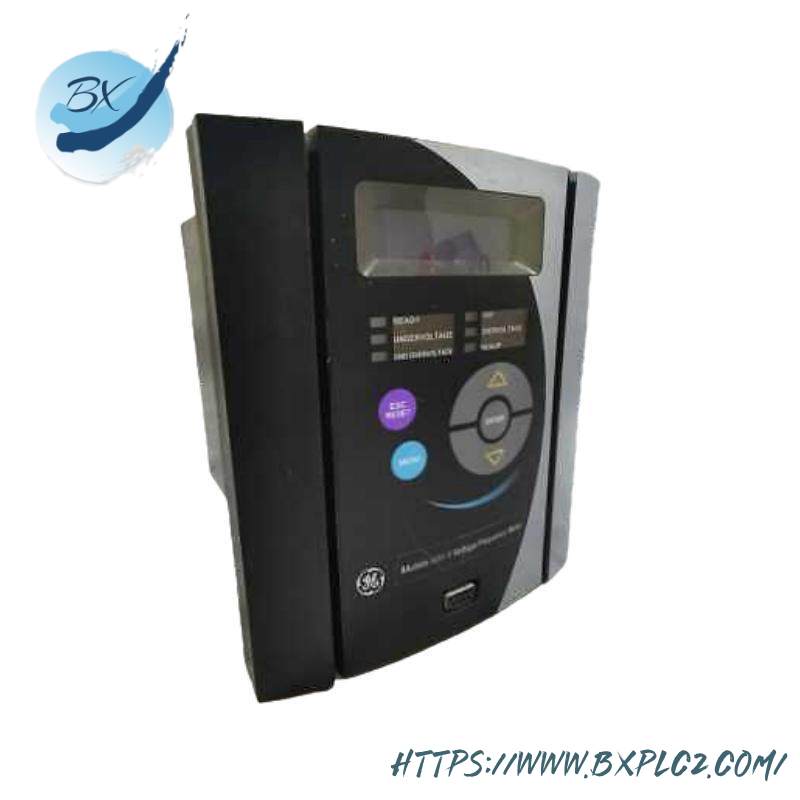

The GE 369-HI-R-M-F-E-H-E is a robust and reliable Motor Management Relay designed to provide superior protection and diagnostics for industrial motors. With a wide control power range of 50-300 VDC / 40-265 VAC, this relay ensures optimal performance across various electrical environments. Featuring 6 optically isolated digital/switch inputs and the ability to record up to 512 events, it provides comprehensive monitoring and protection capabilities. The unit also includes a fuse rated at 3.15 A H 250 V and can handle ground current input frequencies between 20 to 100 Hz, making it suitable for demanding industrial settings.
Designed to operate efficiently up to 2000 meters above sea level and meeting pollution degree II standards, the 369-HI-R-M-F-E-H-E is built to withstand harsh environments. With optional 12 RTD inputs and a metering package, it offers versatile monitoring options. Additionally, the fiber optic port enhances communication capabilities, ensuring seamless integration with existing industrial systems.
The relay’s enhanced diagnostics and faceplate provide clear and detailed information, facilitating easy troubleshooting and maintenance. Ideal for protecting motors (3-phase) and associated systems, the GE 369-HI-R-M-F-E-H-E is an indispensable tool for any industrial facility looking to enhance motor management and reliability.
