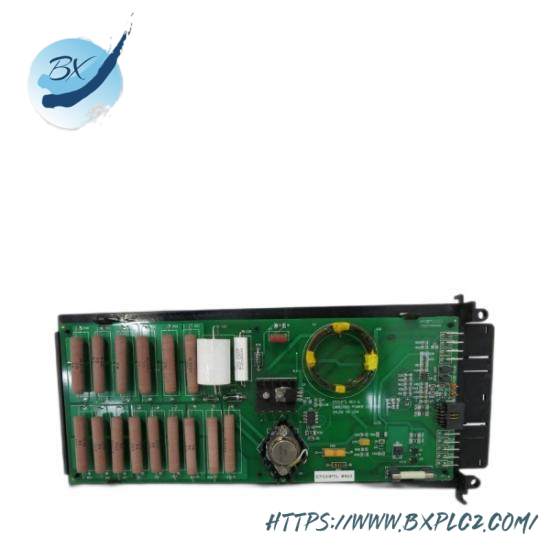

GE-FANUC DS3800HPTK GATE DRIVER CARD

Model Number:DS3800HPTK1H1K

Application Category:GE Boards & Turbine Control

Mark IV DS3800:Yes

Number of Gate Drivers:1

Resistor Type:15 long grey resistors, 18 Ohms ±5%, 10W

Resistor Color Bands:10 other resistors

Diodes:13 various colored diodes

Capacitors:13 capacitors, varying sizes

Fuses:1 large glass fuse

LED Indicator:1 small red LED

Potentiometer:1 small blue potentiometer

Dimensions:Specific dimensions provided by the manufacturer

Hardware Revision:Original design, no known revisions

    Integrating cutting-edge technology, the GE DS3800HPTK GATE DRIVER CARD ensures reliable and efficient control in industrial applications, particularly in the power generation sector.

    This card is equipped with high-quality components including long grey resistors, color-coded resistors for precision current management, and robust diodes that contribute to its superior performance.

    With a wide operating temperature range and high power rating, the DS3800HPTK is designed to withstand harsh environments and deliver consistent performance over extended periods.

    Installation is straightforward with a single edge labeled for easy identification and two screw points, ensuring quick setup without compromising safety.

    Manufactured with meticulous attention to detail, each part is clearly marked with a letter-number system for easy reference. This card is a testament to GE’s commitment to providing premium, durable solutions for industrial control systems.
