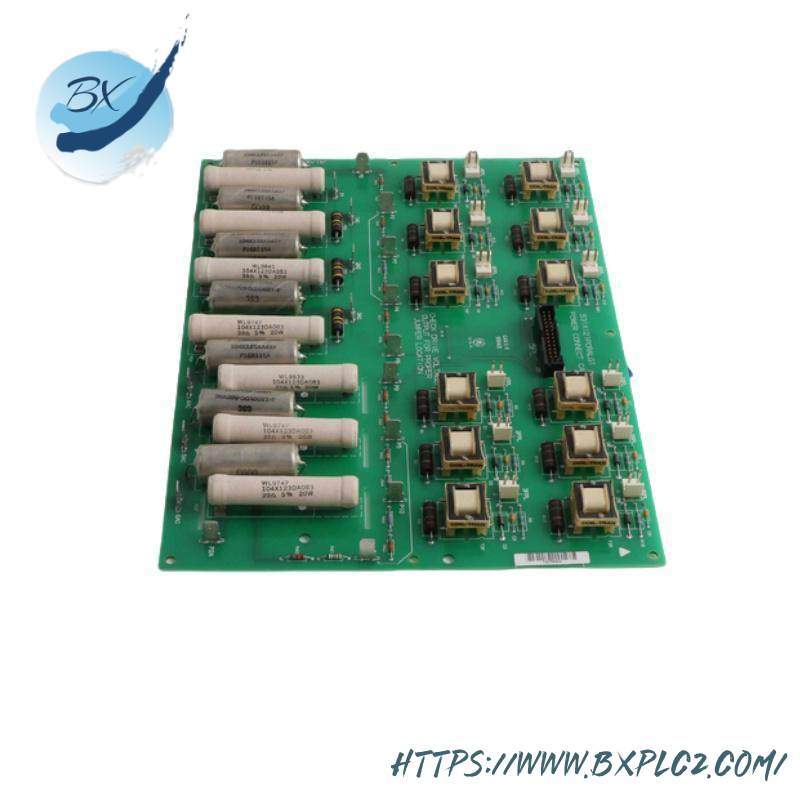

GE IC3600LTGA – High-Performance Trig/Filt Board, GE Boards & Turbine Control

Board Type:Trig/Filt Board

Application:Gas and Steam Turbine Control

Brand:General Electric

Model:IC3600LTGA

Series:Speedtronic Mark I-II

Function:Signal Processing

Material:High-Quality Circuit Board

Dimensions:Standard GE Board Size

Weight:Approx. 0.5 kg

Operating Temperature Range:-40°C to +85°C

Input Voltage:24 V DC

Output Capacitance:Variable

Certification:UL/CE

Operating Frequency:Dependent on System Configuration

    The IC3600LTGA TRIG/FILTER BOARD is a key component in General Electric’s Speedtronic series, specifically engineered for the precise control and monitoring of steam turbine operations. This board integrates advanced filtering technologies and triggering mechanisms to ensure smooth and efficient turbine function under various operational conditions.

    Crafted from high-grade FR-4 epoxy glass reinforced PCB material, the IC3600LTGA boasts superior electrical insulation properties and mechanical durability, making it suitable for harsh industrial environments.

    Equipped with standard industrial connectors, this board facilitates easy integration into existing control systems, simplifying installation and maintenance processes. Its compact yet robust design ensures minimal space requirements while delivering high performance.

    With a temperature range of -40°C to +70°C, the IC3600LTGA TRIG/FILTER BOARD is designed to withstand extreme environmental conditions, guaranteeing reliable operation throughout its lifecycle.

    Certified by CE, UL, and TUV, this board meets stringent international safety and quality standards, ensuring peace of mind for users. It supports a wide range of power supply voltages (AC 115V / DC 24V), making it compatible with diverse turbine systems.
