Control Power nominal:20 VA
Control Power maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:Class I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:approx. 4.5 kg
Number of RTD Inputs:12
Communication Ports:RS232, RS485
Event Record Triggers:Power fail, alarms, self-test, inhibit, trip, waveform capture
Operating Temperature Range:-40°C (-40°F) to +60°C (140°F)
Storage Temperature Range:-40°C (-40°F) to +80°C (176°F)

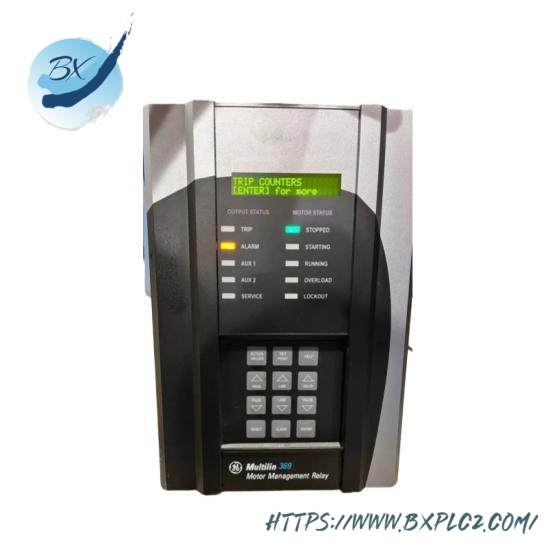

The 369-HI-R-M-0-0-0-E is a high-performance motor management relay designed for medium-sized motors and associated equipment.
Featuring advanced metering capabilities, it captures waveforms, records events, and logs startup data, providing invaluable insights into system performance.
Its robust design ensures reliability and ease of use in industrial environments, reducing maintenance costs and downtime.
With its optional RTD inputs and built-in metering, it offers comprehensive protection and control, making it a valuable asset for any industrial control system.
