Manufacturer:General Electric
Series:EX2100
Part Number:IS200TBTCH1CBB
Functional Acronym:TBTC
Functional Description:Thermocouple Terminal Board
PCB Coating:Conformal Coating
Functional Revision:1C
Artwork Revision:B
Contact Inputs:3
Power Supplies:[“M1″,”M2”]
Coating Type:Thin, Chemically Applied Layer
Relay Usage:Close Relay 41 for Redundant Control

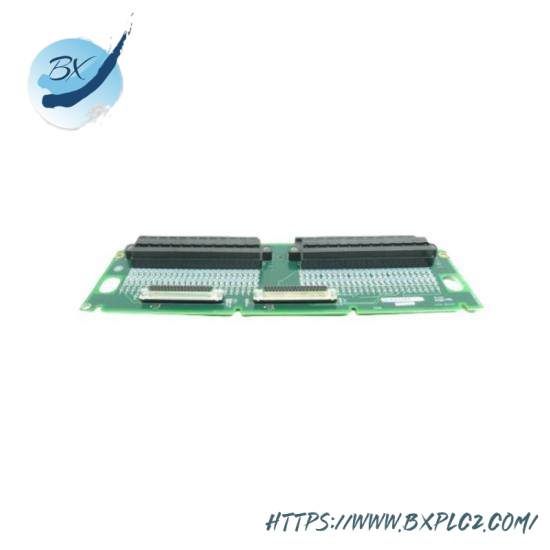

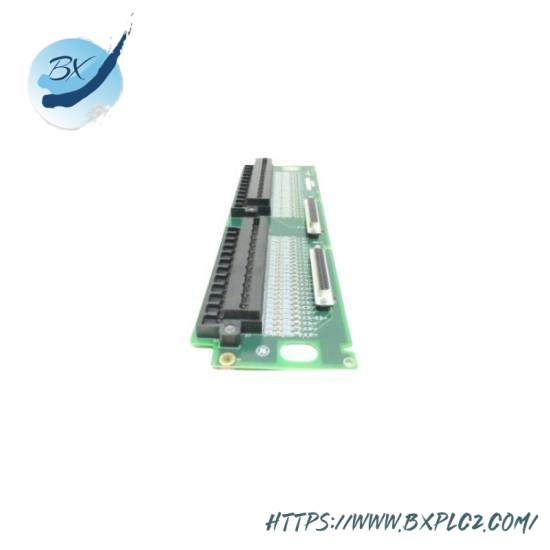

Engineered specifically for GE‘s EX2100 Excitation Control Series, the IS200TBTCH1CBB Circuit Board delivers unparalleled performance and reliability in industrial applications.
Featuring a conformal coating, this board is protected against environmental hazards, ensuring robust functionality in harsh conditions.
With its three functional revisions (C) and artwork revision (B), this board offers enhanced features and design improvements over its predecessor, the IS200TBCIH2 board.
The inclusion of M1 and M2 power supplies provides flexibility in power management, accommodating diverse operational requirements.
The board supports three contact inputs, facilitating seamless integration with various control systems and sensors.
Utilizing a dedicated Relay 41 for redundant control ensures system stability and reliability, preventing potential downtime and enhancing operational efficiency.
