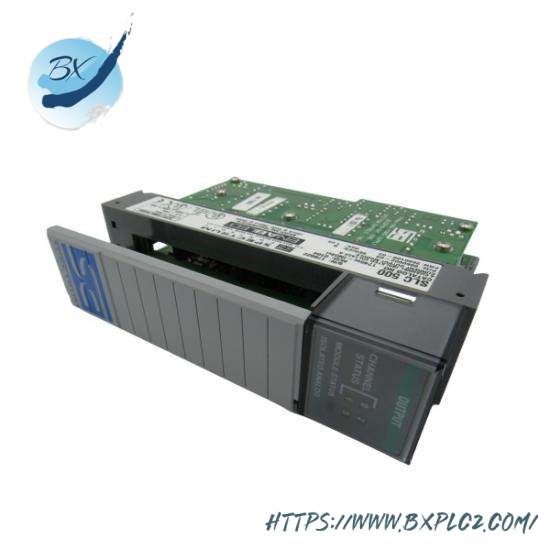

High-Performance 1746SC-INO4VI Volt Output SLC 500 Controller for Industrial Automation

Number of Channels:2 Input, 2 Output

Common Mode Voltage Range (Input):-20 to 20 V

Absolute Input Voltage (Input):+/- 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range (Input):-20 to 20 MA

Output Range (Output):-10 to 10 V – 1 LSB, Full Scale: 10 VDC

Overvoltage Protection (Input):7.5 VAC RMS

Input Range (Output):-10 to 10 VDC – 1 LSB

Voltage Rating (Output):Overvoltage Protection: 7.5 VAC RMS

Current Rating (Backplane):55 mA

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

    Introducing the AB 1746SC-INO4VI Analog Input Module, a critical component in industrial automation systems designed to optimize your plant’s performance by seamlessly integrating sensor data.

    With its advanced capabilities, this module ensures precise and reliable signal conversion, making it ideal for a wide range of applications including temperature, pressure, and flow measurements.

    Featuring a robust and compact design, the 1746SC-INO4VI is built to withstand harsh industrial environments while offering a lightweight profile for easy installation.

    Equipped with compatibility for various thermocouple types, it supports both ±50mV and ±100mV measurement ranges, providing unparalleled flexibility and accuracy in data acquisition.

    For seamless integration into your existing control system, the module supports the SLC 500 bus protocol, ensuring efficient communication and data transfer.

    Backed by a commitment to quality and reliability, the AB 1746SC-INO4VI comes with a comprehensive set of specifications tailored to meet the demands of modern industrial automation.
