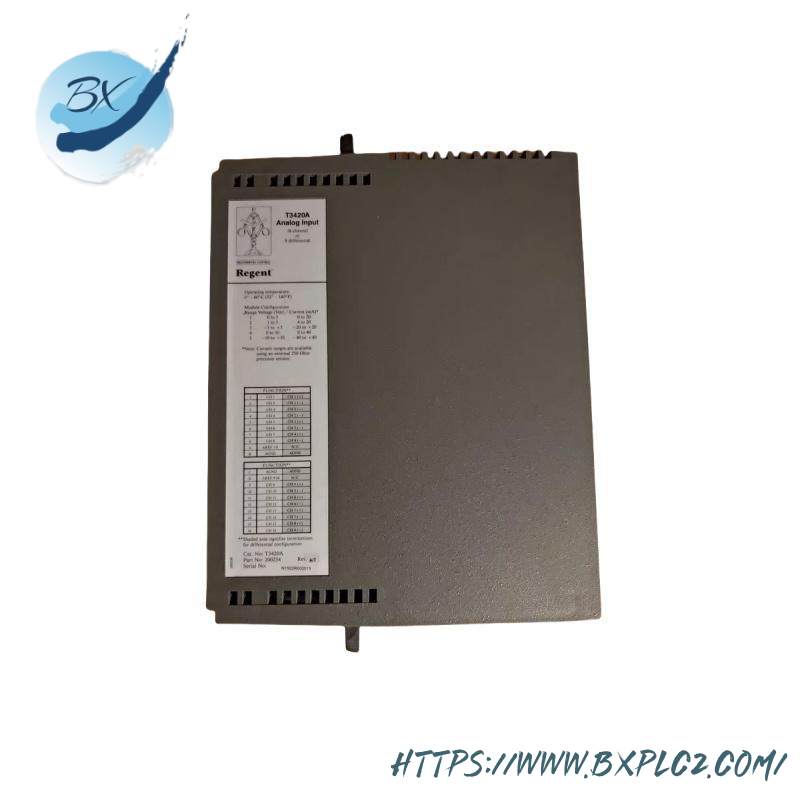

ICS Triplex T3420A Analog Input Module – Precision Data Collection for Industrial Automation

Brand:ICS TRIPLEX

Model:T3420A

Type:Analog Input Module

Operating Range:10-100 V DC

Current Consumption:≤ 10 mA

Accuracy:+/- 0.5% + 2 LSB

Input Channels:16

Environmental Temperature:-20°C to +85°C

Humidity:95% RH non-condensing

Power Supply:24 VDC

Dimensions:105 x 95 x 25 mm

Weight:180 g

    The ICS Triplex T3420A Analog Input Module is engineered with cutting-edge technology, offering unparalleled accuracy and reliability in industrial control environments. Its 16-bit resolution ensures precise data acquisition, critical for complex operations and real-time decision-making.

    With a wide input range from -10V to +10V, this module is versatile enough to integrate with a variety of sensors and measurement devices, making it suitable for a broad spectrum of industrial applications. Its high sampling rate of 500Hz enables fast response times and dynamic system monitoring.

    Efficiency is at the heart of the ICS Triplex T3420A, consuming a maximum of 100mW. This low power consumption contributes to reduced operational costs and longer maintenance intervals, optimizing overall system performance.

    Compact yet robust, the module measures 76mm x 50mm x 25mm, ensuring easy installation in tight spaces without compromising functionality. It features two 0.1in. pin headers for seamless connection to external circuits.

    Designed for durability, the ICS Triplex T3420A can withstand a wide range of environmental conditions. It operates within temperatures from -20°C to +70°C and can be stored under extreme conditions from -40°C to +85°C, ensuring reliable operation in diverse industrial settings.
