Power Rating:1200V/800A
Switching Frequency:Up to 16kHz
Temperature Range:-40°C to +175°C
Efficiency:Over 98%
Cooling Method:Active Air Cooling
Insulation Resistance:Minimum 10MΩ @500VDC
Electrical Life:Over 100,000 Switching Cycles

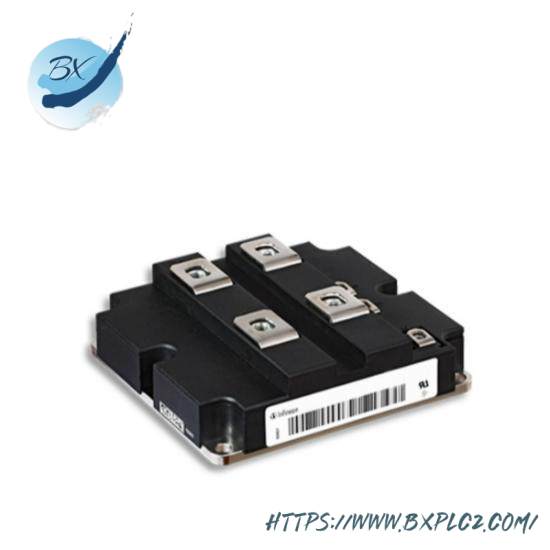

The Infineon FZ800R33KF2C is a state-of-the-art IGBT module engineered for exceptional efficiency and durability in high-power scenarios. Its advanced design ensures optimal thermal management and enhanced electrical performance.
This module boasts a wide operating temperature range, from -40°C to +175°C, making it suitable for extreme environmental conditions typically encountered in industrial and automotive environments.
Featuring a maximum continuous current capacity of 800A at 33VDC, this IGBT module is capable of delivering significant power with minimal loss, making it an ideal choice for demanding applications requiring high power density.
With a guaranteed insulation resistance of ≥ 10MΩ and a dielectric strength of ≥ 6kVrms, the FZ800R33KF2C ensures reliable operation under harsh conditions, significantly reducing the risk of failures due to voltage surges or electrical disturbances.
Equipped with a metal can package featuring integrated tabs for easy installation and cooling enhancement, this IGBT module supports efficient heat dissipation and simplifies the integration process into complex systems.
The Infineon FZ800R33KF2C is designed with thermal management in mind, boasting a low thermal resistance of ≤ 1.4°C/W, which optimizes heat transfer and prevents overheating, ensuring consistent performance throughout its operational life.
