Operating Voltage:400VAC
Nominal Drive Voltage:360-480V
Continuous Power Out:3.9 kW
Peak Current:15.3A (rms), 21.6A (0-pk)
Velocity Loop Bandwidth Frequency:500Hz
Current Loop Bandwidth Frequency:1300Hz
PWM Frequency:8kHz
Efficiency:98%
Internal Shunt Resistor:115Ω
Dimensions:Width 5.5in, Depth 11.9in, Height 14.7in
Weight:12lbs (5.4kg)

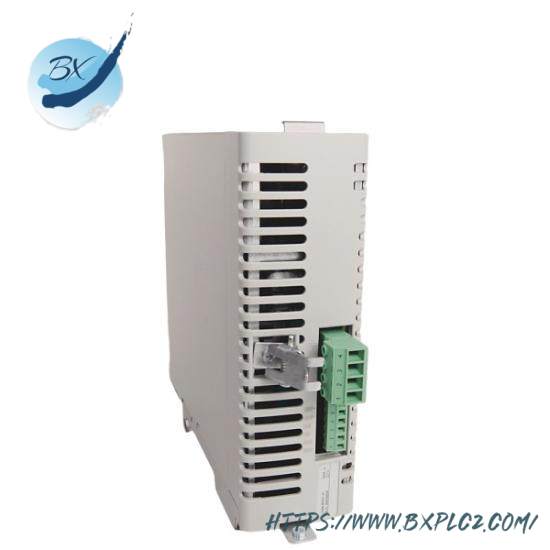

The Kollmorgen 2094-BM01-M industrial control drive system is engineered to deliver exceptional precision and reliability in motion control applications. With its robust design and advanced technology, it ensures smooth operation and minimal downtime, even under the most demanding conditions.
Featuring a peak current of 15.3 Amperes and a peak output current of 21.6 Amperes, this drive system is capable of handling a wide range of tasks efficiently. Its versatile input voltage range and nominal voltage level make it adaptable to various industrial environments.
The velocity loop bandwidth frequency of 500 Hz and the current loop bandwidth frequency of 1300 Hz contribute to its high responsiveness and control accuracy, ensuring precise movement and positioning. The 8 kHz Pulse Width Modulation (PWM) frequency enhances the system’s ability to perform complex tasks with ease.
Equipped with an internal shunt resistor rated at 115 ?, the 2094-BM01-M offers improved heat dissipation and enhanced system stability. Its high efficiency of 98% reduces energy waste, contributing to cost savings and environmental sustainability.
This drive system is designed with user-friendliness in mind. Its intuitive interface and straightforward setup process make it accessible to both experienced engineers and those new to the field of motion control. Comprehensive documentation and support ensure a seamless integration into existing systems.
