Nominal Input Voltage Range:12 V DC to 24 V DC
Nominal Output Current:20 A and 40 A
Power Loss Nominal Load Max:10 W (IOUT = 20 A)
Net Weight:0.75 kg
Connection Method:Screw connection
Phoenix Type Designation:Other

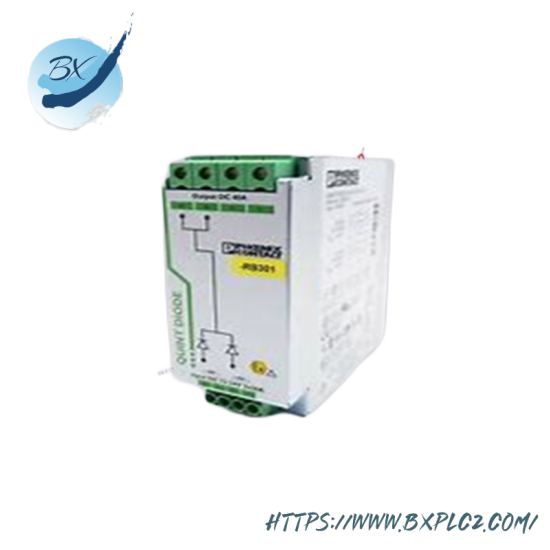

Product ID:QUINT-DIODE/12-24DC/2X20/1X40
The Phoenix Contact QUINT-DIODE is engineered with precision to meet the demanding needs of industrial control systems. Its compact design ensures minimal space usage on the DIN rail, making it an ideal choice for environments where space is at a premium.
Featuring a robust construction and high-quality materials, this diode module is designed for long-lasting performance, ensuring reliability in harsh industrial settings. It efficiently manages power flow, preventing damage from overvoltage and undercurrent conditions.
With its wide nominal input voltage range of 12V DC to 24V DC, the QUINT-DIODE offers flexibility in various industrial applications. Whether you’re working with battery-powered systems or direct current circuits, this module ensures stable and consistent power distribution.
The QUINT-DIODE’s output current capabilities are tailored for maximum efficiency. It can handle up to 40A under nominal load conditions, providing ample power without compromising on safety. This makes it suitable for applications requiring high current handling capacity.
The integrated power loss feature, with a maximum of 10W at 20A, ensures that energy is utilized effectively, reducing unnecessary waste and contributing to overall system efficiency. This not only enhances operational cost-effectiveness but also aligns with sustainable practices in modern industrial setups.
