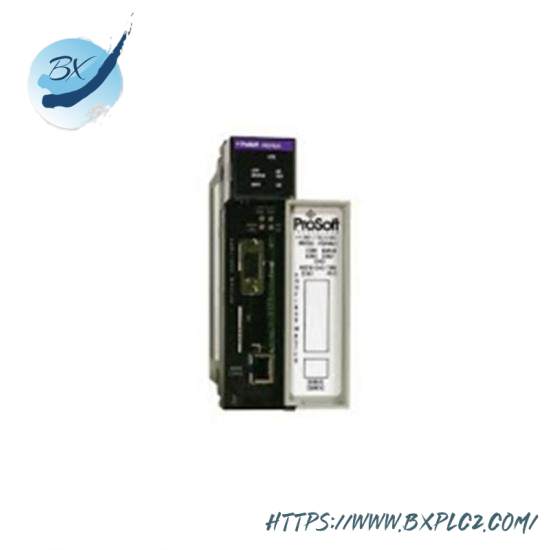

ProSoft MVI56-PDPMV1, PROFIBUS DP-V1 Master Network Module

Compatibility:Backplane compatible with 1769 series

Designation:Recognized as Input/Output module

Processor Memory Access:Access to processor memory for efficient data exchange

Data Transfer Method:Ladder Logic for module memory and processor controller tags

Configuration Data Source:Obtained from ProSoft Configuration Builder Software

Network Support:Supports complete Master specifications per IEC 61158

Acyclic Parameter Transfer:Class 1 or Class 2 DPV1 services for acyclic parameter data

ControlLogix Processor Interface:Acts as bridge between PROFIBUS network and ControlLogix processor

Data Transfer Asynchronicity:Asynchronous data transfer for improved performance

    Engineered with robust and reliable technology, the MVI56-PDPMV1 module ensures smooth operation in demanding industrial environments.

    With its compatibility to Profibus DP-V1 standard, it seamlessly integrates with a wide range of industrial devices, enhancing system connectivity and efficiency.

    The module features ladder logic for data transfer between its internal memory and the ControlLogix processor, facilitating easy programming and customization.

    Equipped with advanced configuration capabilities through ProSoft Configuration Builder Software, this module enables users to define PROFIBUS networks precisely, ensuring optimized performance.

    Providing high-speed communication at up to 12 Mbps, it guarantees quick data exchange, crucial for real-time industrial processes. The inclusion of 16-bit integers and support for floating point data movement further enhances its versatility and data handling capacity.
