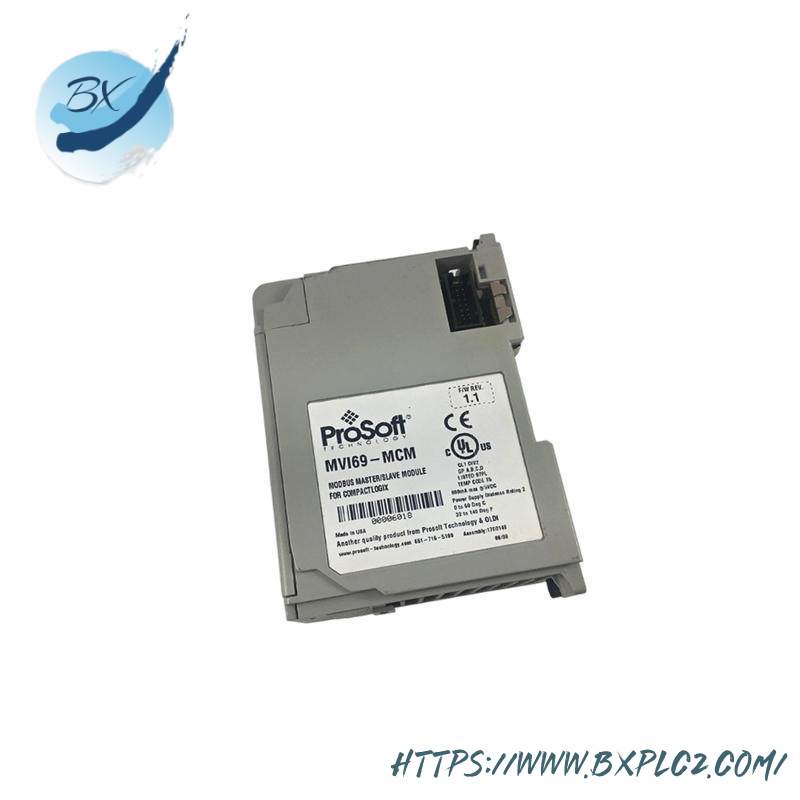

Prosoft MVI69-MCM Communication Module – ASCII, High-Speed Data Transfer

I/O Size:0/120/240 – 16 bit integers

Communication parameters:Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data size: 7 or 8 Bits, Parity: None, Even, Odd

Floating Point Data Support:Supported, configurable for various implementations

Protocol Interface:Modbus Master/Slave protocol

Module Compatibility:Licensed Backplane Technology, manufactured under Rockwell Automation’s license

    The Prosoft MVI69-MCM Communication Module is engineered for industrial automation systems, ensuring reliable and efficient data exchange between CompactLogix and MicroLogix processors. This module supports ASCII communication, enabling seamless interaction within complex control environments.

    Manufactured under license from Rockwell Automation, it boasts licensed backplane technology, guaranteeing robust performance and compatibility with various control platforms. Its high-speed data transfer capabilities significantly enhance system responsiveness and throughput.

    Designed for easy integration, this module can be installed as a Generic 1769 module, complete with sample ladder logic instructions for quick setup. This feature simplifies the integration process, saving valuable time and resources.

    With built-in support for Modbus Master/Slave protocol, users can easily emulate both Modbus Master and Slave devices across multiple configurable application ports, expanding the module’s versatility in diverse industrial applications.

    Featuring diagnostic data available in RSLogix 5000 controller tags, the MVI69-MCM enables real-time monitoring of node health, facilitating proactive maintenance and optimization of operational processes. This ensures uninterrupted system performance and enhanced reliability.
