Module Type:Digital Input Module
Channels:16 Channels
Input Voltage Range:24 VAC / 24 VDC
Connection Method:Screw Terminal
Operating Temperature:-25°C to +60°C
Storage Temperature:-40°C to +85°C
Power Supply:24 VDC
Current Consumption:Typical 10 mA per channel
Isolation Voltage:1000 VDC
Form Factor:Modicon X80 Series
Compliance Standards:IEC 61131-2, EN 61131-2

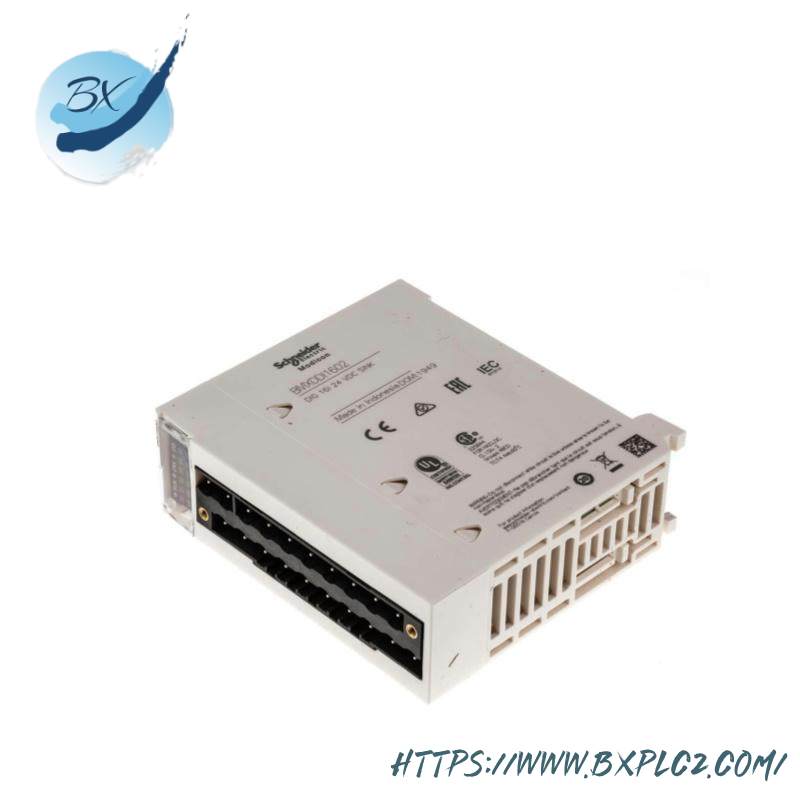

The SCHNEIDER BMXDDI1602 is a highly reliable digital input module designed for industrial automation systems. It provides 16 channels of digital inputs, each capable of handling 24 VAC or 24 VDC signals using negative logic. This module is part of the Modicon X80 series, ensuring seamless integration with other components in your control system.
Key Design Highlights:
– Reliable and robust design for harsh industrial environments.
– Supports both AC and DC voltage sources, offering flexibility in application deployment.
– Negative logic configuration simplifies signal processing and enhances accuracy.
– Compact size allows for efficient space utilization within control panels.
– Wide operating temperature range from -25°C to +60°C ensures consistent performance in varying environmental conditions.
The SCHNEIDER BMXDDI1602 module is ideal for applications requiring precise monitoring and control of multiple digital inputs. Whether you’re working on machine automation, process control, or any other industrial application, this module delivers the performance and reliability needed to meet your operational needs.
