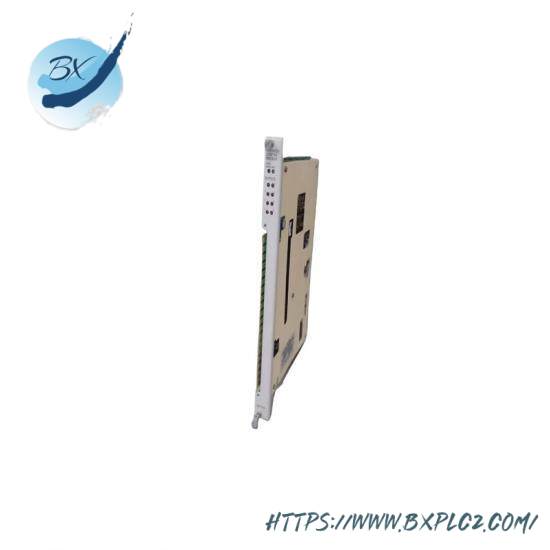

SIEMENS 505-7003 High Speed Counter – Advanced Module for Industrial Control

Series:505

Type:High Speed Counter/Encoder Input Module

Module ID:505-7003

Operating Voltage:24 VDC

Current Consumption:Less than 50 mA

Counter Channels:4

Counter Modes:Up/Down, Up Only, Down Only

Resolution:16 bits

Frequency Range:0 Hz to 1 MHz

Accuracy:+/- 1 count

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions (WxHxD):102 mm x 52 mm x 76 mm

Weight:Approximately 150 g

    Crafted with precision and durability, the SIEMENS 505-7003 High Speed Counter Module is an essential tool for modern industrial environments. This module boasts an advanced algorithm capable of processing up to 1 kHz frequency inputs, ensuring unparalleled performance in dynamic production lines.

    With its 8 high-speed counting channels, it can simultaneously monitor multiple processes, providing real-time data on speed, distance, and other parameters crucial for efficient operation. The robust design withstands harsh industrial conditions, ensuring reliability and longevity.

    Featuring a wide operating voltage range from DC 24V, this module is compatible with various power sources commonly found in manufacturing facilities. Its low current consumption per channel allows for extended operation without straining the power supply.

    The SIEMENS 505-7003 comes equipped with a user-friendly interface, facilitating easy setup and configuration. Detailed diagnostic functions help identify potential issues quickly, minimizing downtime and improving maintenance efficiency.

    Incorporating the latest semiconductor technology, this module ensures high accuracy and consistency in measurement. It’s ideal for applications requiring precise timing, synchronization, and monitoring, such as robotic systems, conveyor belt operations, and precision machinery.
