Brand & Model:Siemens 6ES7214-1BD23-0XB8
CPU Type:Compact CPU
Power Supply:AC/DC/RLY, 85-264V AC
Memory:12Kbytes User Program Memory, 8Kbytes Data Memory
Inputs:(14) 24V DC Digital Inputs, Sink/Source
Outputs:(10) Relay Contact Digital Outputs, 30V DC or 250V AC 2A/each
Analog Input:(2) Analog Potentiometers
Interface:1 x RS-485 Interface (MPI/PPI/Freeport)
Operating Range:47 – 63 Hz
Dimensions:4.488 x 4.606 x 3.465 inches
Weight:1.043 lbs

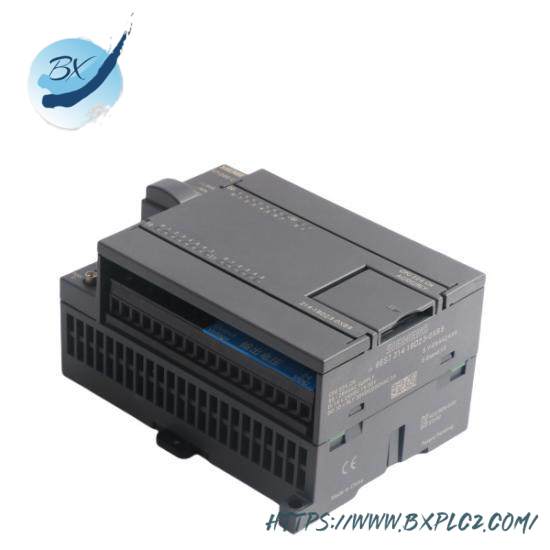

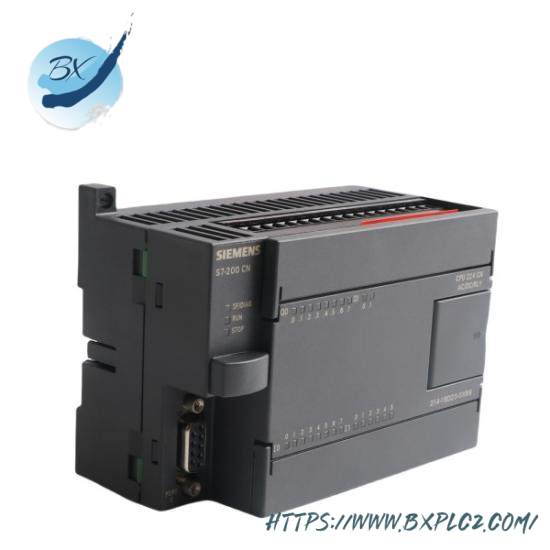

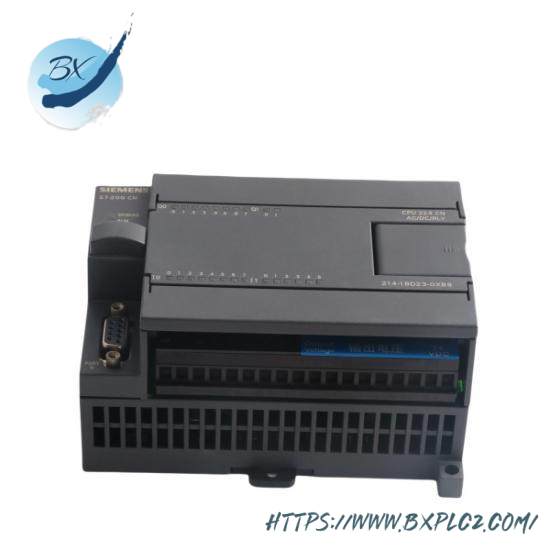

The Siemens 6ES7214-1BD23-0XB8 Processor Module is a cutting-edge solution designed for industrial control systems, offering unparalleled performance and reliability. This compact unit is equipped with a powerful CPU 224XP, ensuring swift and efficient execution of complex tasks. It is specifically engineered for direct integration with industrial networks like Profibus DP, enabling seamless communication and data exchange.
Featuring a DC power supply, this module supports robust operation under demanding conditions, making it suitable for a wide range of industrial applications. With its extensive input/output capabilities, including 14 digital inputs (DI) and 10 digital outputs (DO) relay, the module provides flexibility and precision in managing process control and monitoring tasks.
Equipped with two analog inputs (AI) and one analog output (AO), it facilitates the handling of continuous signals, making it ideal for applications requiring sensitivity and accuracy in measuring and controlling physical quantities. The 12/16 KB code memory and 10 KB data memory provide ample space for programming and storing critical data.
The inclusion of two PPI/FREEPORT ports enhances connectivity, allowing for direct connection to peripheral devices and other control systems. The operating voltage of 12/16 VDC ensures compatibility with various industrial standards, while its temperature range (-25°C to +60°C) guarantees reliable operation across diverse environmental conditions.
This module is designed with a focus on compactness and efficiency, making it an excellent choice for space-constrained environments where high performance is essential. Its ability to operate at up to 1 MHz ensures rapid response times, crucial for real-time control scenarios.
