Type:Compact CPU
Model:314C-2PN/DP
CPU Type:SIMATIC S7-300
Memory:2.8 MB (1.4 MB data/1.4 MB program)
Input/Output Channels:24 DI/16 DO, 4 AI, 2 AO
High-Speed Counters:4 (60 kHz)
Interfaces:MPI, DP
Power Supply:24 V DC
Dimensions:13.20 x 15.20 x 13.10 inches
Weight:0.733 kg
Connectors:Front connector (2x 40-pole)

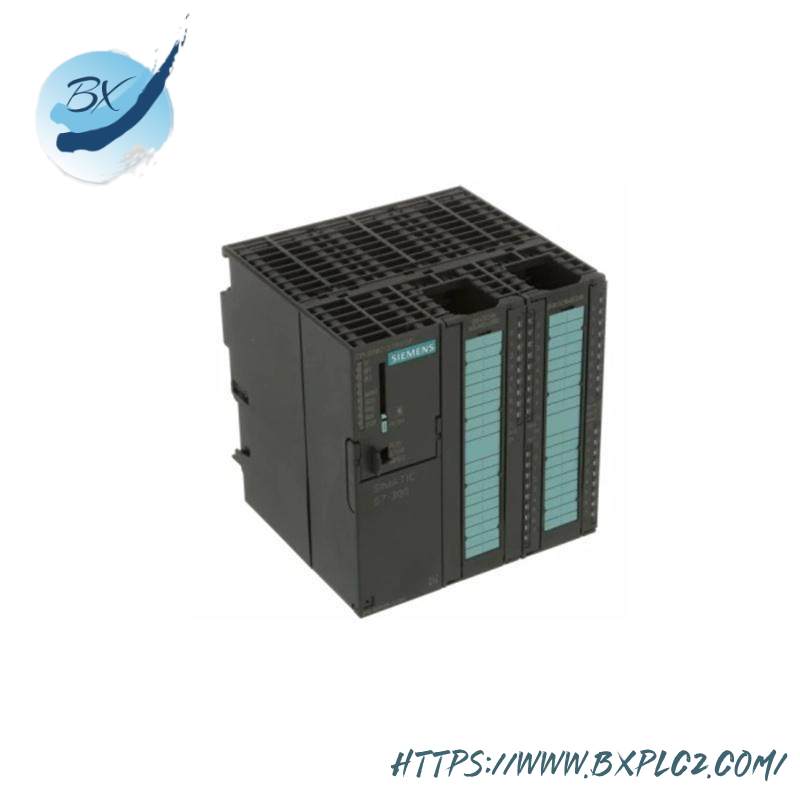

The SIEMENS 6ES7314-6EH04-0AB0 Compact CPU is a modular and compact design tailored for efficient operation in various industrial settings. Its built-in PLC function enables precise control over automation processes, making it an indispensable component in today’s smart factories.
Equipped with an integrated EMI filter for 230V 1 phase or 460V 3 phase, this CPU ensures reliable performance in environments with potential electrical disturbances. The inclusion of optional fieldbus modules such as DeviceNet, Profibus, LonWorks, and CANopen further enhances its adaptability to diverse network architectures.
Featuring a 600 Hz maximum frequency, the CPU is capable of handling complex control tasks with ease. The built-in high-speed counters at 60 kHz provide accurate timing for repetitive processes, ensuring precision in manufacturing operations.
With a memory capacity of 192 KB, the CPU can store substantial amounts of data and programs, allowing for sophisticated control logic and process optimization. The front connector, compatible with 2x 40-pole configurations, ensures easy integration into existing systems.
The CPU comes with a requirement for a Micro Memory Card and a front connector for enhanced functionality. It supports direct DC BUS sharing, enabling flexible extension and scalability without compromising system performance. Complete protection measures are in place to safeguard against common operational risks, ensuring uninterrupted operation.
