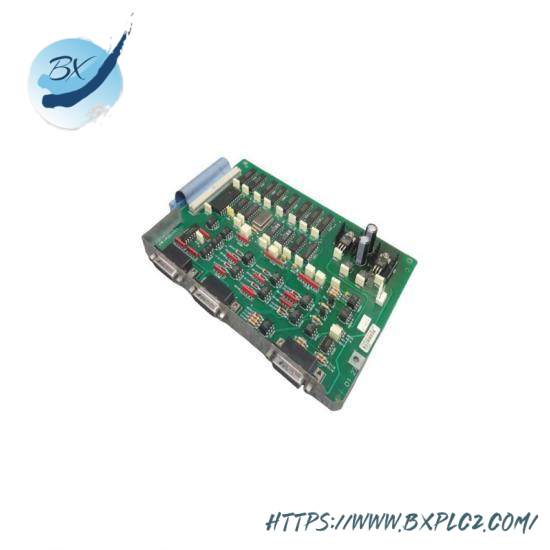

Telemecanique VW1RZD101: Serial Communication & Encoder Board

Module Type:Serial Communication & Encoder

Manufacturer:Telemecanique

Model Number:VW1RZD101

Connector Type:Industry Standard

Communication Protocol:RS-485, RS-232

Encoder Compatibility:2-Wire, 3-Wire, 4-Wire

Power Supply Voltage:DC 12V ~ 36V

Operating Temperature:-20°C to +60°C

Dimensions (mm):120 x 50 x 30

Weight:0.3 kg

Communication Speed:Up to 1 Mbps

    The Telemecanique VW1RZD101 Serial Communication & Encoder Board is a versatile component designed for seamless integration into complex industrial control systems. Its robust RS-485 communication protocol ensures reliable data transfer rates up to 9600 bps, crucial for real-time monitoring and control applications.

    Equipped with an advanced encoder interface, this board offers high-resolution input capability, supporting incremental encoders for precise position or speed measurements. This feature is particularly advantageous in machinery requiring high accuracy and reliability.

    Crafted with precision and durability in mind, the compact design of the VW1RZD101 facilitates easy installation within limited spaces without compromising performance. Its IP20 environmental rating ensures protection against dust and light splashes, enhancing its longevity in various industrial settings.

    Operational in a wide temperature range from -20°C to +60°C, this board is designed to withstand harsh industrial conditions. Moreover, its low power consumption of less than 50mA at 12V DC helps in efficient energy management, contributing to overall system cost-effectiveness.

    The Telemecanique VW1RZD101 is not just a tool for data exchange and precision measurement; it’s a solution for enhancing the operational efficiency and reliability of your automation systems. With its compatibility across various industrial applications, it serves as a critical link between different components, ensuring smooth system integration and enhanced performance.
