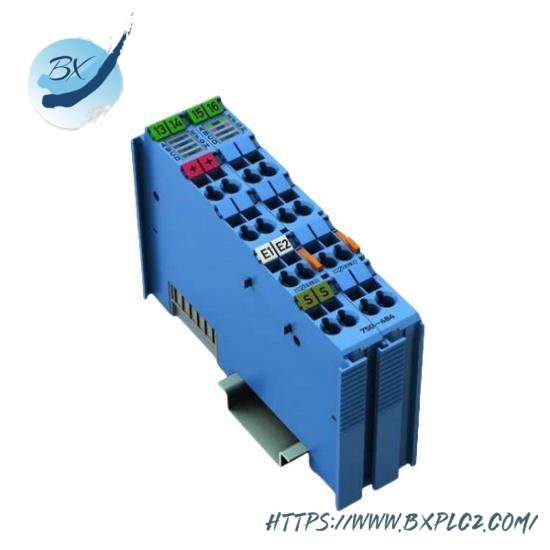

Wago 750-484 Analog Input Module – Precision Data Capture for Industrial Automation

Number of Analog Channels:4

Input Range:0…10 VDC

Accuracy at 25°C:±0.05% + 2LSB

Operating Temperature Range:-40°C to +85°C

Storage Temperature Range:-40°C to +85°C

Relative Humidity:95% non-condensing

Communication Protocol:MODBUS RTU

Supply Voltage:10…30 VDC

Power Consumption:Max. 30mA

Connection Technology:Spring-clamp

Enclosure Material:Polycarbonate, polyamide 6.6

Color:Light Gray

    Introducing the WAGO 750-484 Analog Input Module, engineered to revolutionize the way you manage and analyze industrial data. This high-performance module is specifically crafted for applications demanding exceptional accuracy and reliability. With its robust design and intuitive interface, it seamlessly integrates into existing control systems, offering unparalleled precision in signal acquisition.

    Featuring a wide operating voltage range of 10…30V DC, this module ensures compatibility with a broad spectrum of industrial power supplies. Its efficient power consumption of up to 50mA at 24VDC optimizes energy use, contributing to a more sustainable operational environment. The module supports two channels, each capable of handling various signal types, including 0…10V or 4…20mA, ensuring versatility in application scenarios.

    Equipped with a high input resistance of 50kΩ to 1MΩ, the 750-484 module minimizes signal distortion and ensures accurate readings even under challenging conditions. Its ±0.2% + 2LSB accuracy guarantees exceptional reliability, making it an indispensable component in critical monitoring and control systems.

    Operating within a temperature range of -40°C to +85°C, this module is designed for durability and performance in harsh industrial environments. It can withstand storage temperatures from -55°C to +125°C, ensuring reliable operation even during extreme conditions. The 750-484 module is equipped with a CAGE CLAMP® connection for effortless and secure installation, reducing setup time and complexity.

    For seamless integration into existing networks, the WAGO 750-484 Analog Input Module supports MODBUS RTU communication protocol, facilitating smooth data exchange with other devices and systems. This feature enhances interoperability, allowing for a cohesive control ecosystem that streamlines operations and enhances efficiency.
