Operating Voltage Range:20-24VDC
Current Rating:10A
Reverse Voltage Rating:1000V
Package Size:20x10x5mm
Installation Type:Panel-Mount
Operating Temperature Range:-40°C to +85°C
Insulation Resistance:≥10MΩ
Material:Aluminum Housing, Ceramic Diodes
Protection Class:IP20

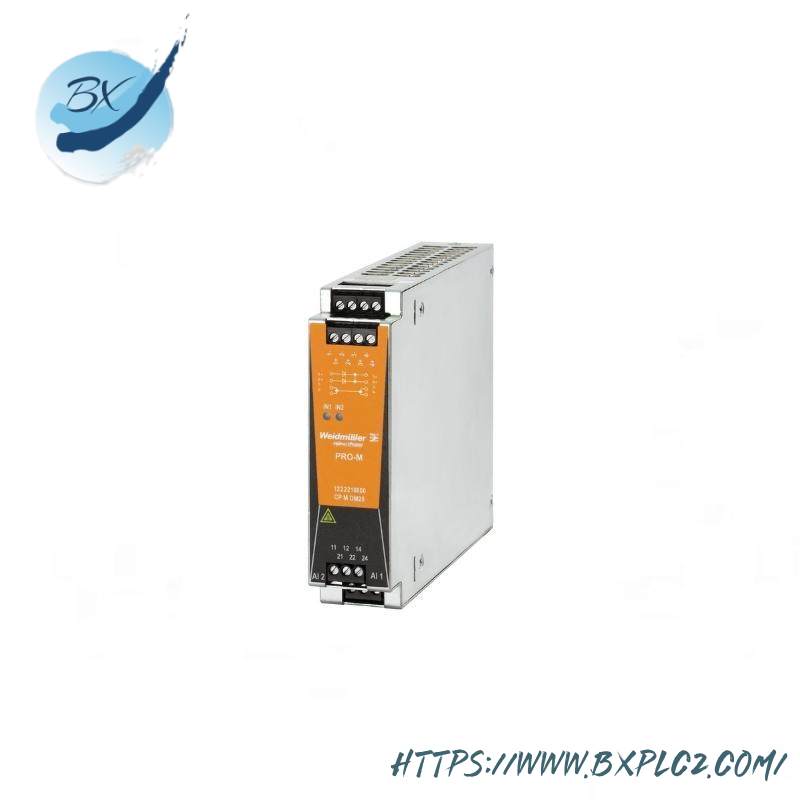

The Weidmuller CP-DM20 Diode Module is engineered to deliver superior performance in industrial applications, offering unmatched efficiency and reliability in power conversion tasks. Its compact design ensures easy integration into various systems without compromising on functionality.
With its robust aluminum housing and ceramic diodes, this module is built to withstand harsh industrial environments, ensuring durability and longevity. The CP-DM20 is capable of handling current ratings up to 10A, making it suitable for a wide range of power management tasks.
Featuring a wide operating voltage range of 20-24VDC, the CP-DM20 provides flexibility for different industrial systems. Its reverse voltage rating of 1000V offers protection against potential damage caused by reverse polarity connections, ensuring system safety.
The module’s ability to operate within a temperature range from -40°C to +85°C makes it ideal for use in extreme conditions encountered in many industrial settings. This broad temperature tolerance ensures consistent performance across various geographical locations.
Equipped with a high insulation resistance of ≥10MΩ, the CP-DM20 minimizes electrical leakage and enhances system reliability. Additionally, its IP20 protection class guarantees basic splash water protection, making it suitable for industrial environments where water splashes are common.
