Input Resistance Calculation:250 Ω + (voltage drop (3 V max) in the input protection circuit) / current value
Voltage Developed:Between connecting terminals for 2-wire transmitter
Module Compatibility:For R3.02 or later versions
Safety Standard:Intrinsically safe design
Number of Channels:16
Power Supply:Minimum operating voltage consideration for transmitter

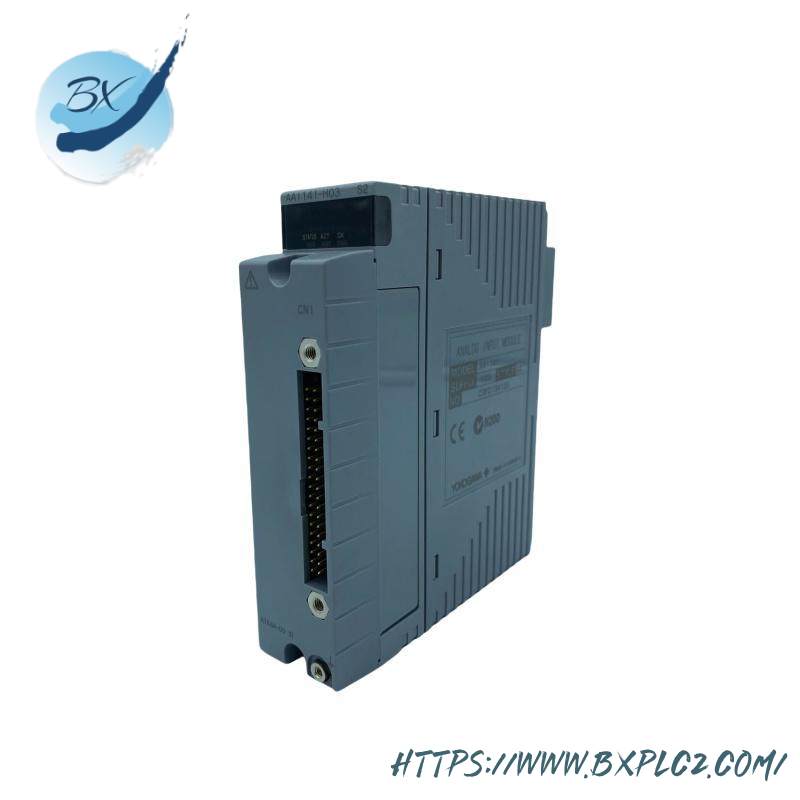

The Yokogawa AAI141-H03 Analog Input Module is specifically designed for applications requiring high safety standards, ensuring accurate data collection without compromising on safety protocols. Its robust design withstands the rigors of harsh industrial environments, making it ideal for use in factories, chemical plants, and other potentially hazardous areas.
With its advanced isolation barrier technology, this module provides a physical separation between input and output circuits, significantly reducing the risk of electrical hazards. This feature is particularly important in industries where safety is paramount.
Featuring 16 channels for simultaneous data acquisition, the AAI141-H03 offers flexibility and efficiency in managing multiple input signals. Its wide operating voltage range of 4 to 20 mA ensures compatibility with various transmitters and sensors.
The module’s input resistance is dynamically adjustable, enhancing its adaptability to different signal conditions. By considering the voltage drop in the input protection circuit, the module ensures precise data transmission even under varying environmental conditions.
For optimal performance, it is recommended to use the latest software version, R3.02 or later, which includes enhanced functionalities and improved error handling mechanisms. This ensures seamless integration with existing systems and minimizes downtime.
