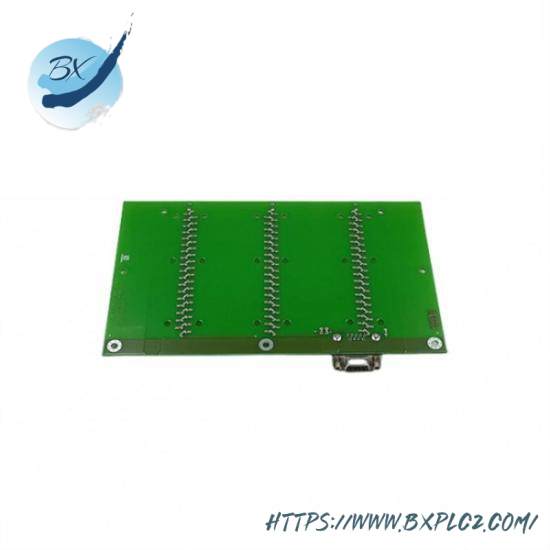

ABB 3BHE021083R0103 HVD BOARD – Advanced Industrial Control Module

Model Number:3BHE021083R0103

Brand:ABB

Module Type:High Voltage Drive Board

Operating Temperature Range:-25°C to +55°C

Input Voltage:120V to 240V AC

Output Voltage:Adjustable, up to 2000V DC

Current Capacity:Up to 1000A

Protection Features:Overcurrent, overvoltage, and short circuit protection

Communication Interface:RS-485 Modbus RTU

Certifications:CE, UL, FCC

Dimensions (WxHxD):250mm x 150mm x 100mm

Weight:5kg

    The ABB 3BHE021083R0103 HVD BOARD is engineered to deliver exceptional performance in demanding industrial environments. Its advanced control algorithms ensure smooth operation and precise voltage control, making it suitable for applications requiring high power and efficiency.

    Constructed from high-grade aluminum alloy, this board is not only lightweight but also highly resistant to corrosion and heat, ensuring reliable performance even under extreme conditions.

    Equipped with state-of-the-art PWM (Pulse Width Modulation) technology, the HVD BOARD provides superior current regulation and minimizes energy loss, leading to reduced maintenance costs and enhanced operational efficiency.

    Safety is paramount with the ABB 3BHE021083R0103, featuring comprehensive protection mechanisms against overcurrent, overvoltage, and overtemperature events. This ensures the system operates within safe parameters, preventing potential damage or downtime.

    Designed for easy integration into existing systems, the HVD BOARD supports various communication protocols, enabling seamless connectivity and data exchange with other components. Its modular design allows for flexible installation and scalability, catering to diverse industrial needs.
