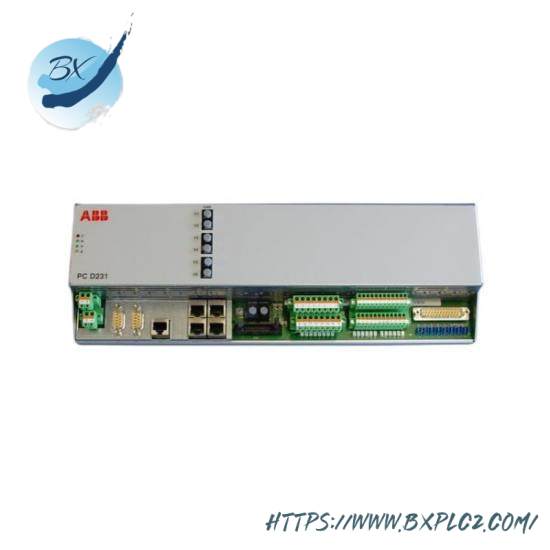

ABB 3BHE025541R0101 PCD231B Exciter Control Module; Manufacturer: ABB

Model Number:3BHE025541R0101

Brand:ABB

Module Type:PCD231B

Control Method:Digital Signal Processing (DSP)

Operating Range:60Hz to 120Hz

Input Voltage:208V to 480V AC

Output Current:Up to 200A RMS

Communication Interface:Ethernet, RS-485

Environmental Rating:IP54

Dimensions:152mm x 152mm x 89mm

Weight:1.5kg

Certifications:[“CE”,”UL”]

    The ABB 3BHE025541R0101 PCD231B Exciter Control Module is engineered to deliver unparalleled performance and reliability in challenging industrial environments. Its robust design ensures seamless integration with existing excitation systems, facilitating quick installation and minimal downtime.

    Featuring advanced digital control algorithms, this module optimizes the excitation process, resulting in improved power factor and reduced energy consumption. Its ability to handle high voltage and frequency demands makes it suitable for a wide range of applications, from small to large power generation facilities.

    With its RS-485 communication interface, the PCD231B module supports easy setup and monitoring through industry-standard protocols. This ensures compatibility with most control systems and allows for remote diagnostics and adjustments, enhancing operational efficiency.

    Equipped with comprehensive protection features such as overvoltage and overcurrent protection, the module safeguards against potential failures and extends the lifespan of connected equipment. Its passive air cooling system ensures continuous operation without the need for maintenance-intensive fans or cooling fluids.

    Adapted to operate within a broad temperature range (-20°C to +50°C), the PCD231B module maintains its performance in varying environmental conditions. The IP20-rated enclosure provides adequate protection against dust and light splashes, ensuring durability in industrial settings.
