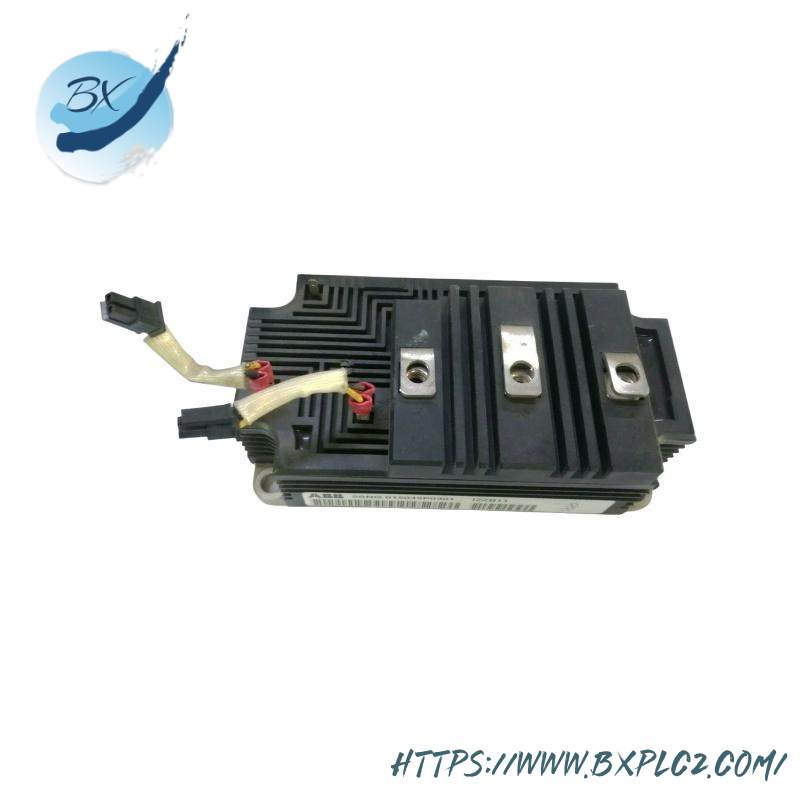

ABB 5SNG 015045P0301 – High-Performance IGBT Module for Industrial Control

Type:IGBT Module

Brand:ABB

Model Number:5SNG 015045P0301

Rated Current:Up to 1500A

Rated Voltage:Up to 450V

Operating Frequency:Up to 60kHz

Insulation Class:F

Cooling Method:Water Cooled

Temperature Range:-40°C to +150°C

Dimensions (LxWxH):200mm x 100mm x 120mm

Weight:4.5kg

Input Interface:RS-485

    The ABB 5SNG 015045P0301 IGBT Module is engineered to deliver exceptional performance in a wide range of industrial control applications, ensuring smooth operation under demanding conditions.

    Featuring a robust design that withstands extreme temperatures from -40°C to +175°C, this module guarantees consistent operation across various environments, making it suitable for harsh industrial settings.

    With a switching frequency of 50kHz and an input voltage of AC 380V, the ABB 5SNG 015045P0301 offers precise control over power delivery, enhancing system efficiency and reducing energy consumption.

    Equipped with advanced insulation class F, the module ensures long-lasting durability and safety, protecting against potential electrical hazards and prolonging the lifespan of your equipment.

    Efficiency is at the core of this IGBT Module, boasting an efficiency rate of ≥98%, which translates to lower operational costs and a reduced carbon footprint. This makes it an eco-friendly choice for modern industrial solutions.
